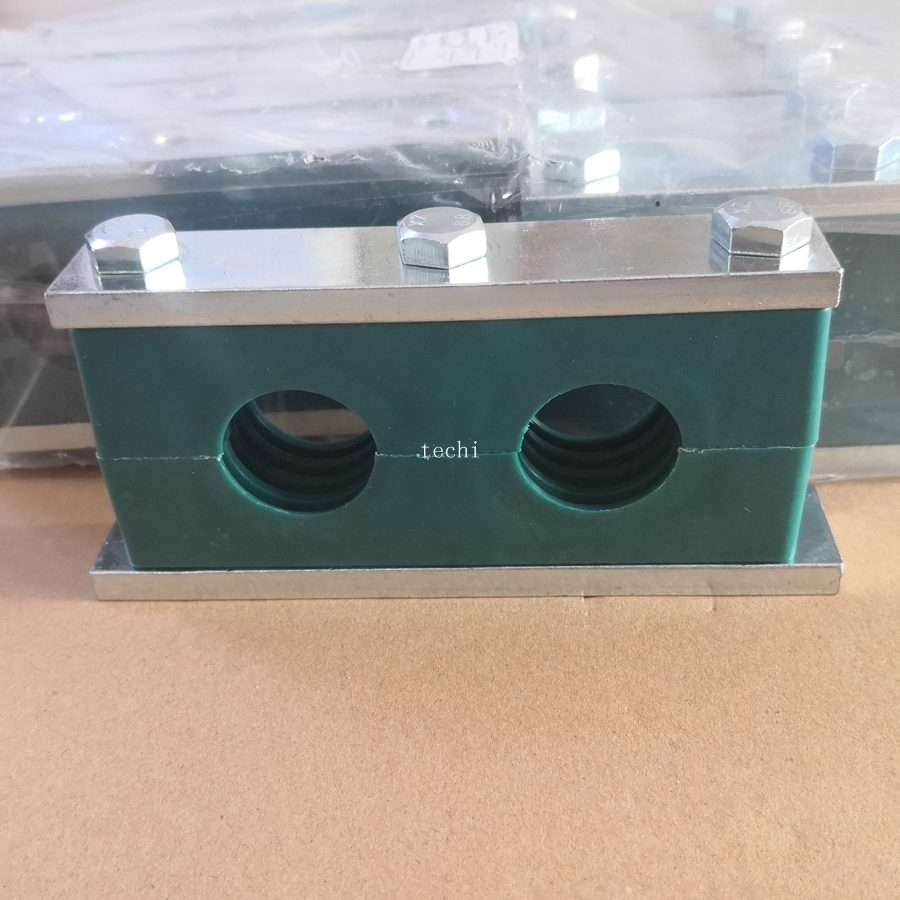

Hydraulic Standard Twin Series Pipe Clamp
Structure:assembly including cover plate, weld plate, clamp body,hexagon bolts
Sizes:Rang of O.D. 6mm to 42mm
Working Temperature
PP -30 degree up to +90 degree in dark green color
PA -40 degree up to +120 degree in dark color
AL -50°C up to +300°C Natural color
Q235 -80°C up to +500°C Galvanizing or parkerising
SUS304 or SUS316 -80°C up to +500°C Natural color
Hydraulic Standard Twin Series Pipe Clamp
Techi industrial Co.,ltd is hydraulic pipe clamp factory and manufacturer in CHINA, Our products cover heavy series pipe clamp, light series pipe clamp, twin series pipe clamp, U form clamp, Saddle clamp,plastic pipe clamp,polyamide pipe clamp. Pipe clamp plates surface treatment:Electroplating (galvanizing, nickel plating, gilding, etc.), painting, heat treatment, carbonitriding, etching, powder painting, polishing, electroplating, sandblasting, anodizing, passivation
HEAVY SERIES HYDRAULIC Twin PIPE CLAMPS are available in a single heavy (SH) unit two (2) bolt design, or a double heavy (DH) unit four (4) bolt design.
Heavy Twin pipe clamp series can be supplied in 5 series for normal mechanical stress,tube O.D 6 to 102mm.( 6~102mm)
| Properities | Polypropylene(PP) | Polyamide(PA) | Aluminium(AL) |
| Density | 0.906/cm³ | 1.12-1.15g/cm³ | 2.9-3.2g/cm³ |
| Flexural Deflection | 36N/mm² | 130-200N/mm² | 170N-400N/mm² |
| Impact Resistance | No Break | No Break | No Break |
| Compressive strength | 90N/mm² | 120N/mm² | 60-80HB5/250 |
| Modulus of Elasticity |
1500N/mm² | 3000N/mm² | 70000N/mm² |
| Tensile Strength | 25-35N/mm² | 80-90N/mm² | 180-300N/mm² |
| Temp.Resistance | -30~+90℃ | -40~120℃ | -75~300℃ |
| Colour | Dark Green or customized colour |
Black,Green or customized colour |
Silver white |
Heavy Duty Hydraulic Pipe Clamp Double Hole size:
Techi industrial produce high quality hydraulic pipe clamps,Weld And Cover Plates Are Made From Low Carbon Steel Material OR (SS304, SS316, Are Available As Per Client Requirement).
| PRODUCT | PIPE CLAMPS |
| STANDERED HYDRAULIC PIPE CLAMP | ACCORDING TO DIN 3015 DIN 3015-PART1 DIN 3015-PART2 DIN 3015-PART3 |
| STANDERED SERIES HYDRAULIC PIPE CLAMP | FOR PIPE OD -6 MM TO 102 MM |
| HEAVY SERIES HYDRAULIC PIPE CLAMP | FOR PIPE OD -6 MM TO 450 MM |
| TWIN SERIES HYDRAULIC PIPE CLAMP | FOR PIPE OD -6 MM TO 42 MM |
| ACCESSORIES | CLAMPS WITH RUBBER INSERT CLAMPS WITH MOUNTAIN RAILS CLAMPS WITH STACKING LAYERS |
| CONSTRUCTION OF CLAMPS BODY | BOTH CLAMPS HALVES ARE IDENTICAL |
Heavy Duty Hydraulic Twin Series Pipe Clamp Package and production lines
