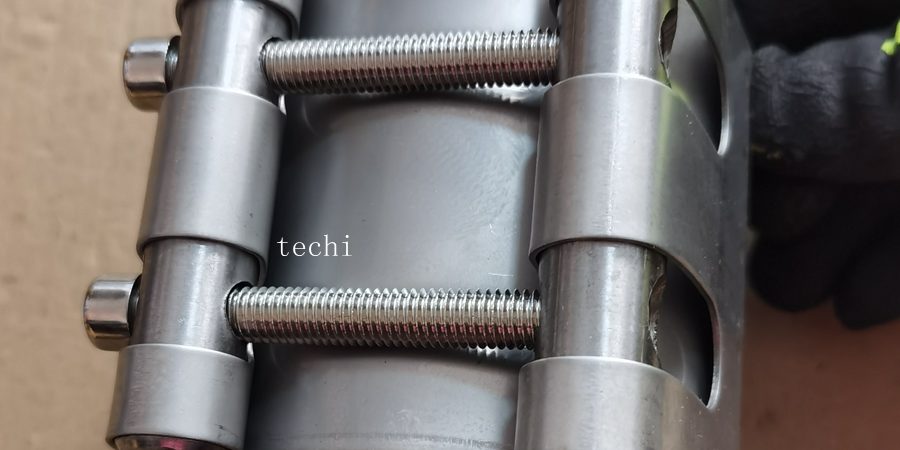

Straub grip coupling size:

STRAUB-pipe coupling combines connection and compensator all in one. The STRAUB design offers

pipe flexibility that dissipates stress and increases the component service life. The coupling’s rubber sealing gasket efficiently dampens vibrations and noise.

GRIP couplings with gear ring protect pipes with feature “pull-out” resistant.



Requires low storage space

• Good accessibility
• Locking part can be rotated into the optimum fitting position access only necessary from one side
• Close pipe arrangement possible providing space for other components
• Little space required for later installation



The pipe repair clamps can be used to repair the following pipe types:

– Ductile Iron (DI) – PE coated steel

– Cast Iron (CI) – PVC*

– Steel (St.) – GRP*

– Asbestos Cement (AC) – PE*



Pipe repair clamp size and description:



Model(A)	D1(OD)	D2	L(S)	MPA	P(N.M)
Pipe repair clamp GR-S-20A	27.2	26-28	60	3.5	5-10
Pipe repair clamp GR-S-25A	34	33-35	60	3.5	5-10
Pipe repair clamp GR-S-32A	42.7	42-44	60	3	10-15
Pipe repair clamp GR-S-40A	48.6	47-49	60	2.8	10-15
Pipe repair clamp GR-S-50A	60.5	59-62	80	2.8	15-20
Pipe repair clamp GR-S-65A	76.3	75-78	80	2.5	15-20
Pipe repair clamp GR-S-80A	89.1	88-92	100	2.5	15-20
Pipe repair clamp GR-S-100A	114.3	113-117	100	2.5	25-30
Pipe repair clamp GR-S-125A	139.8	138-142	110	2	25-30
Pipe repair clamp GR-S-150A	165.2	163-167	110	2	25-30
Pipe repair clamp GR-S-200A	216.3	214-219	140	2	40-80
Pipe repair clamp GR-S-250A	267.4	265-270	140	1.8	40-80
Pipe repair clamp GR-S-300A	318.5	316-321	140	1.8	80-120
Pipe repair clamp GR-S-350A	355.6	353-358	140	1.6	80-120
Pipe repair clamp GR-S-400A	406.4	403-408	140	1.6	80-120
Pipe repair clamp GR-S-450A	457.2	456-461	140	1.4	80-120
Pipe repair clamp GR-S-500A	508	505-512	140	1.4	120-150
