Aluminium Camlock Coupling Type:C
Material:aluminium;,PP Polypropylene,stainless steel 316,304; brass;
Threads: NPT, BSP (BSPP, BSPT)
Size:1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″,2″ 2-1/2″ 3″ 4″ 5″ 6″
Connection:Flange
Surface Treatment:highly polished
Aluminium Camlock Coupling Type C
Techi industrial is one of top Aluminium camlock coupling type C factory and manufacturer in china,we produce Aluminium camlock coupling type A B C D E F DP DC, stainless steel AISI304 AISI316 camlock coupling C,quick coupler A,camlock fitting adapter B,quick connector type C which can connect or disconnect pipelines without tools. Thread of camlock coupling C are NPT,BSP,BSPT
Camlock coupling Type B Technical parameter:
| Product | camlock coupling |
| Material | stainless steel 316,304; brass; aluminium; PP |
| Type | A / B / C / D / E / F / DC / DP / AA / DD / AD |
| Thread | NPT/BSP/BSPT/DIN2828. |
| Assembly parts | stainless steel, brass, aluminium handles, pins rings and safety pins |
| Connection | male / female |
| Size | 1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″,
2″ 2-1/2″ 3″ 4″ 5″ 6″ ;DN15-DN150 |
| Gasket | buna(NBR),viton and teflon, silica |
| Test pressure | 3/4″-2″ 250PSI(17.6bar);3″-4″ 200PSI(14.8bar); 21/2″ 225PSI(15.8bar);6″150PSI(10.5bar) |
| Workmanship | precision casting or forged |
| Application | petroleums,textiles,minings,brewings, inks, dyes, paper mills, processing plants chemicals, fertilizers, chemicals, |
| Processing | CNC lathe processed |
| Packing | plastic bag → carton → wooden pallet |
Standard :
A-A-59326 (previously called MIL-C-27487) , DIN 2828, Mil-C-27487, F1122, JIS. Body material :Aluminium A356 or A104
handle material:Aluminium, stainless steel AISI304 AISI316 ,brass
Sealing:
NBR EPDM VITION PTEE ENVELOP GASKET Other materials are available on request.
Pins, Rings and Safety clips :We use steel plated pins, steel plated rings and Safety clips. (Note: Safety clips are only available when required by the client, the client have to pay additional if need safety clips)
Size:from 1/2″ to 6″
Aluminium Camlock coupling type C size and drawing:
| Product Name | Size | Working Pressure(Psi) | |
| DN | Inch | ||
| C050-AL | DN15 | ½” | 150 Psi |
| C075-AL | DN20 | ¾” | 250 Psi |
| C100-AL | DN25 | 1″ | 250 Psi |
| C125-AL | DN32 | 1 ¾” | 250 Psi |
| C150-AL | DN40 | 1 ½” | 250 Psi |
| C200-AL | DN50 | 2″ | 250 Psi |
| C250-AL | DN65 | 2½” | 150 Psi |
| C300-AL | DN80 | 3″ | 125 Psi |
| C400-AL | DN100 | 4″ | 100 Psi |
| C600-AL | DN150 | 6″ | 75 Psi |
When connect or disconnect pipeline with Camlock Coupling, It can operate simply, then save time and manpower.Advantage:
- Save fuel: there is Individual valve on the camlock Coupling, it can avoid the loss of oil andoil pressure.
- Protect the environment
Applicable industry:
- Quick disassembly pipeline, aerospace industry,metallurgical industry, ships accessories, chemicals, Municipal Engineering and so on.

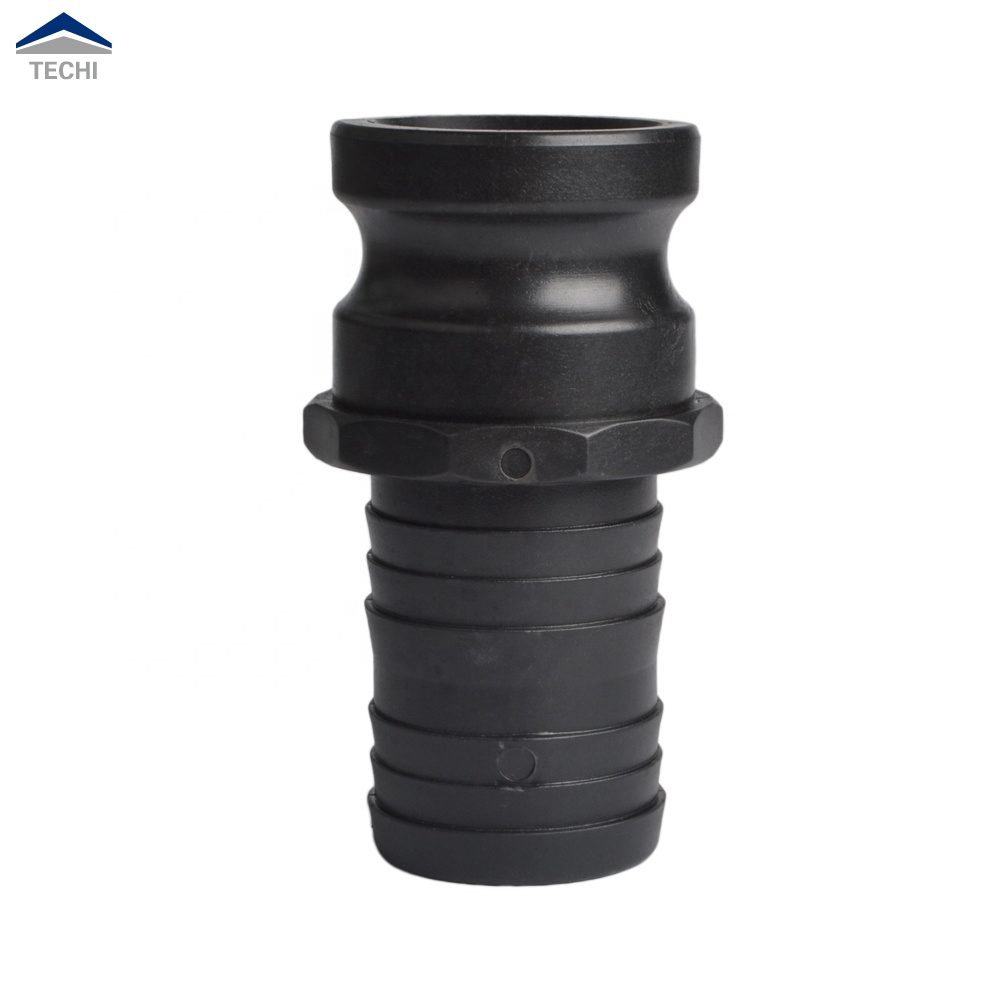

- Type A- Polypropylene Cam and Groove Coupling quick coupler/quick coupling/camlock
Type C- Aluminium Camlock Coupling ready stock:
