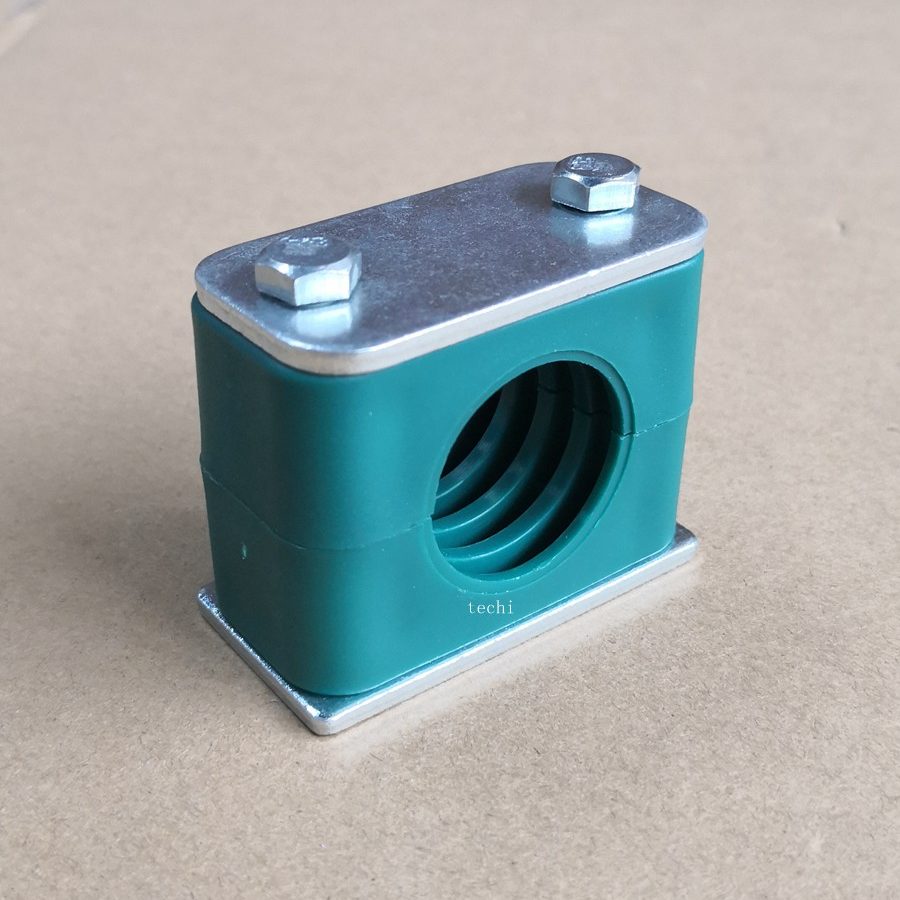

Hydraulic Standard Series Pipe Clamp size 25mm 28mm 30mm

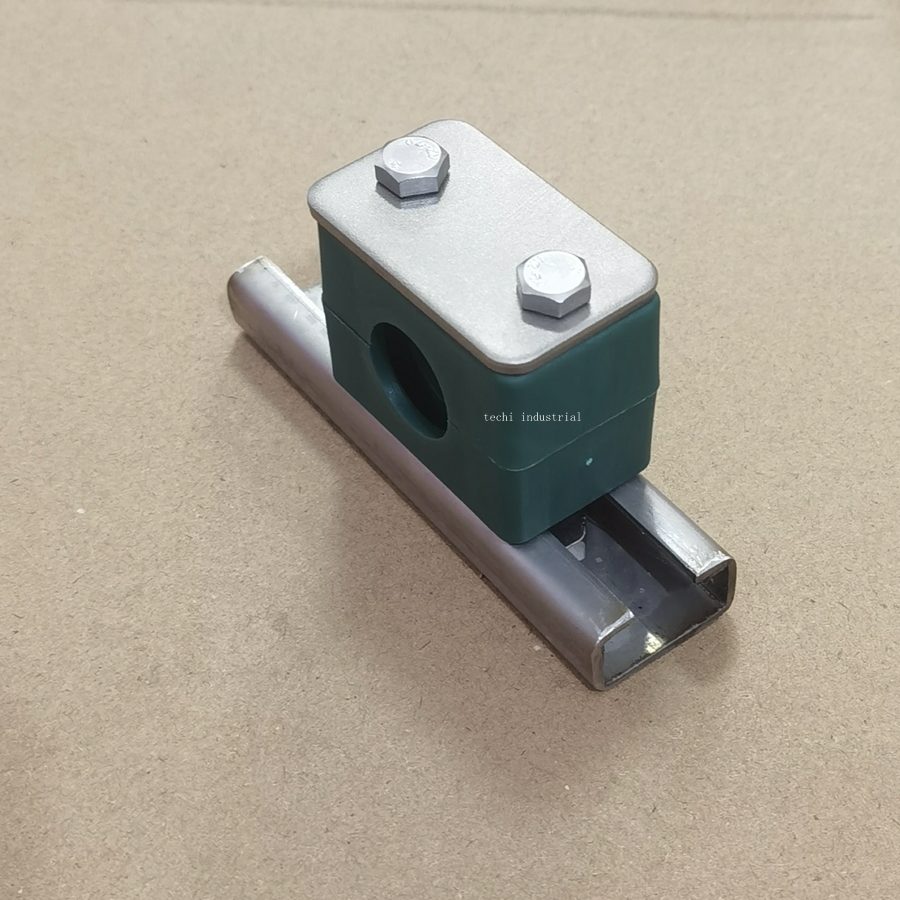

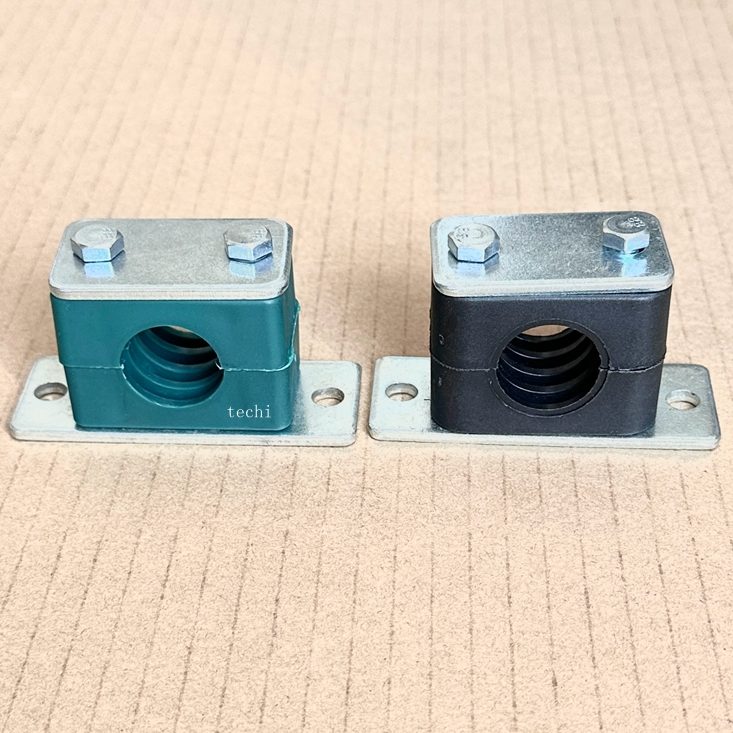

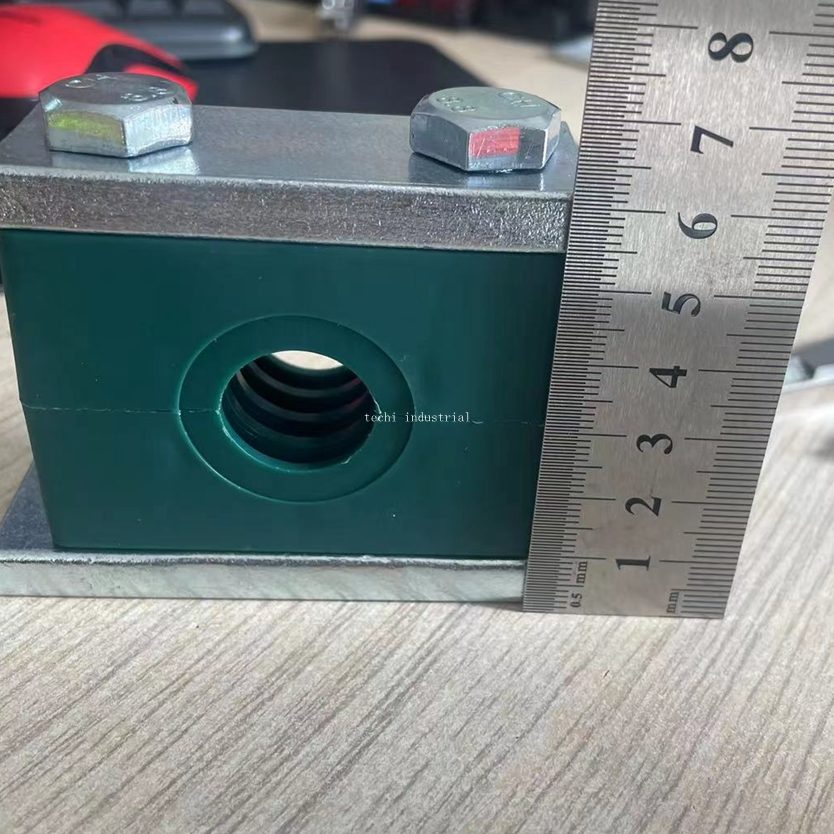

Structure:assembly including cover plate, weld plate, clamp body,hexagon bolts
Sizes:group 3,group 4,28mm 26.9mm 30mm
Pipe clamp material:
Hydraulic standard Pipe Clamp body/halves material:
Polypropylene pipe clamp, aluminium pipe clamp, glass fibre reinforced polyamide and polypropylene with rubber grommet.
Cover plate and bottom plate:
carbon steel,phosphated,zinc/nickel plated
Stainless steel AISI304
Stainless steel AISI316
Hydraulic Standard Series Pipe Clamp Size 26.9mm 28mm 30mm,DIN3015 Part-1,Group 4
Techi industrial produce Tube/Pipe Clamps in different varieties types including Standard Series pipe clamp size 26.9mm 28mm 30mm,Stainless steel 304 AISI316 standard series pipe clamp 26.9mm 28mm 30mm DIN3015 Part-1, Galvanized light series pipe clamp 26.9mm 28mm 30mm,tube clamp Group 4,PA polyamide light duty pipe clamp,Polyprelene light series pipe clamp size 26.9mm 28mm 30mm,hydraulic tube clamp,Heavy Series pipe clamp size 26.9mm 28mm 30mm, and Twin Series pipe clamp 26.9mm 28mm 30mm . Most of the PP PA Tube Clamps we offer start from 6 MM OD up to 50 MM OD.As a direct pipe clamp factory in CHINA,delivery time always 10-20days,no further delay
Standard series pipe clamp size:
| Techi industrial Co., manufacture hydraulic pipe/tube clamps to fix pipe with outer diamater: | |

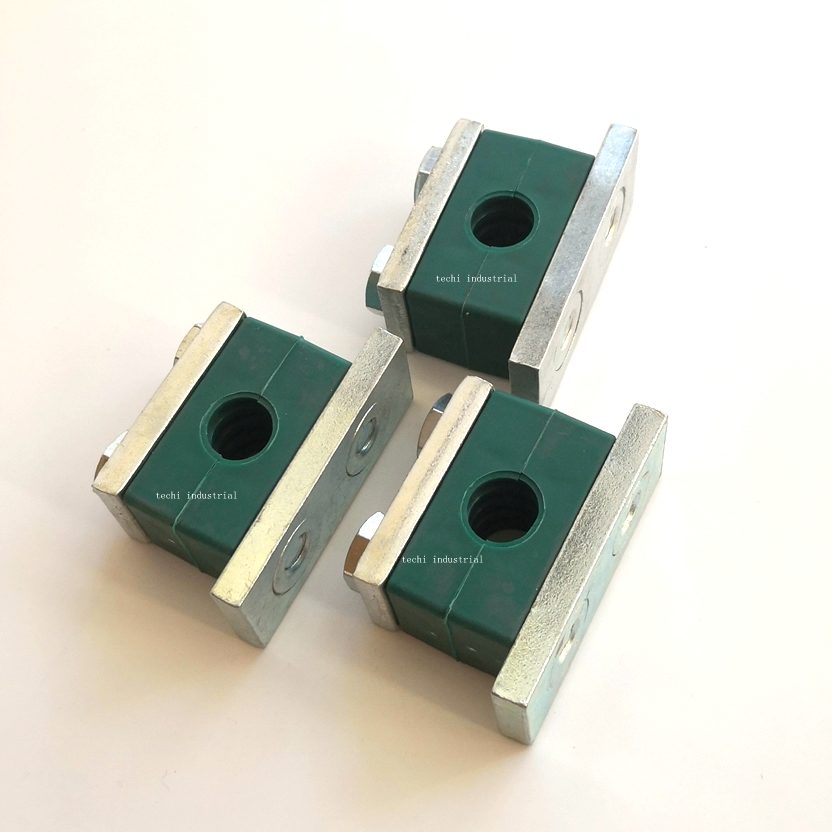

| Size 6-16 mm | Standard Series Hydraulic Pipe Clamp size 6mm 8mm 10mm 12mm 12.7mm 13.5mm 14mm 15mm 16mm 17.2mm 18mm |
Size 18-28 mm |
Standard Series Hydraulic Pipe Clamp size 18mm 19 mm 20 mm21.3 mm 22 mm 23 mm 25 mm 26.9 mm 28 mm 30 mm |
| Size 30-42 mm | Standard Series Hydraulic Pipe Clamp size 30 mm 32 mm 33.7 mm 35 mm 38 mm 40 mm 42 mm |
Standard series hydraulic pipe clamp 26.9mm 28mm 30mm material:
Used for normal hydraulic and pipe diameter of 6–120 mm, male.

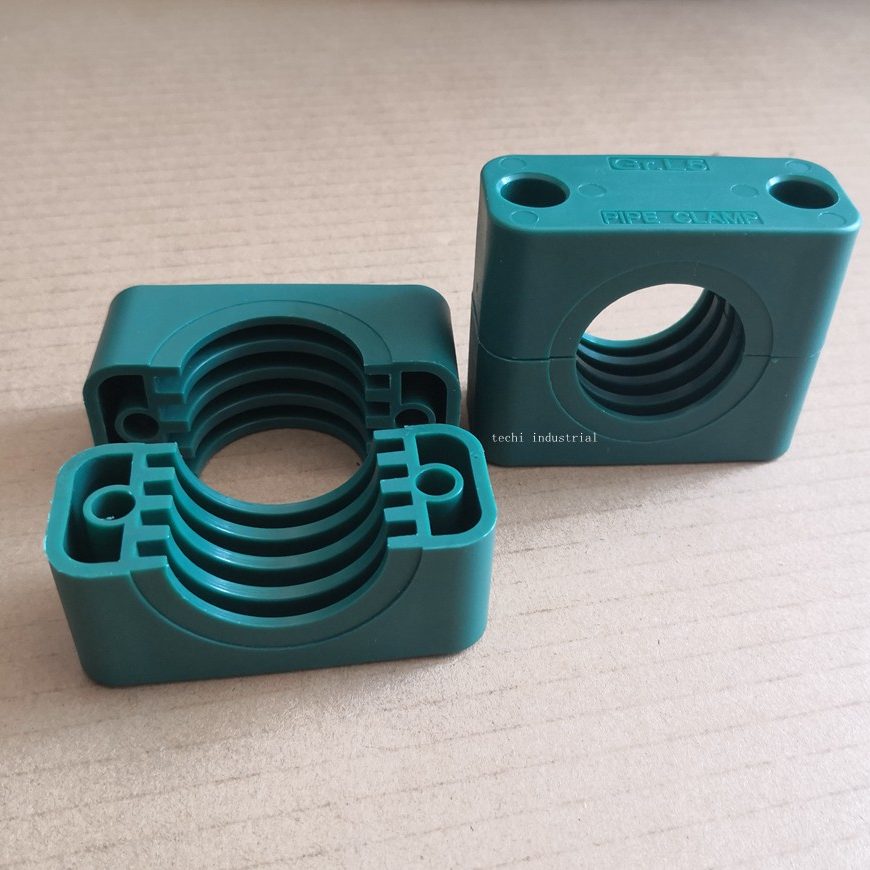

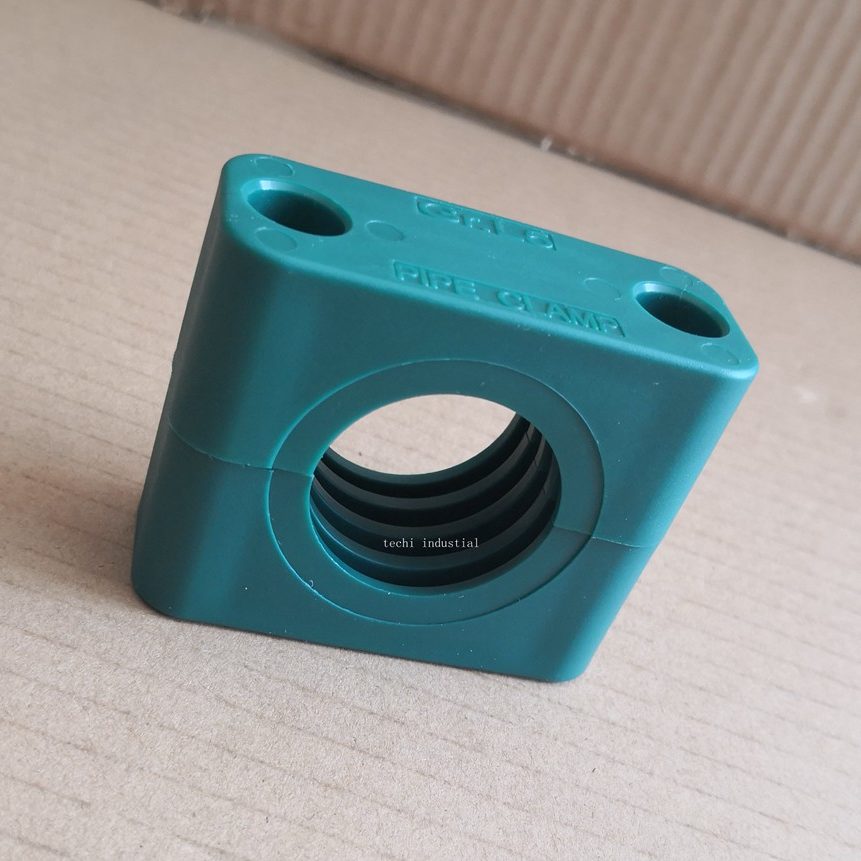

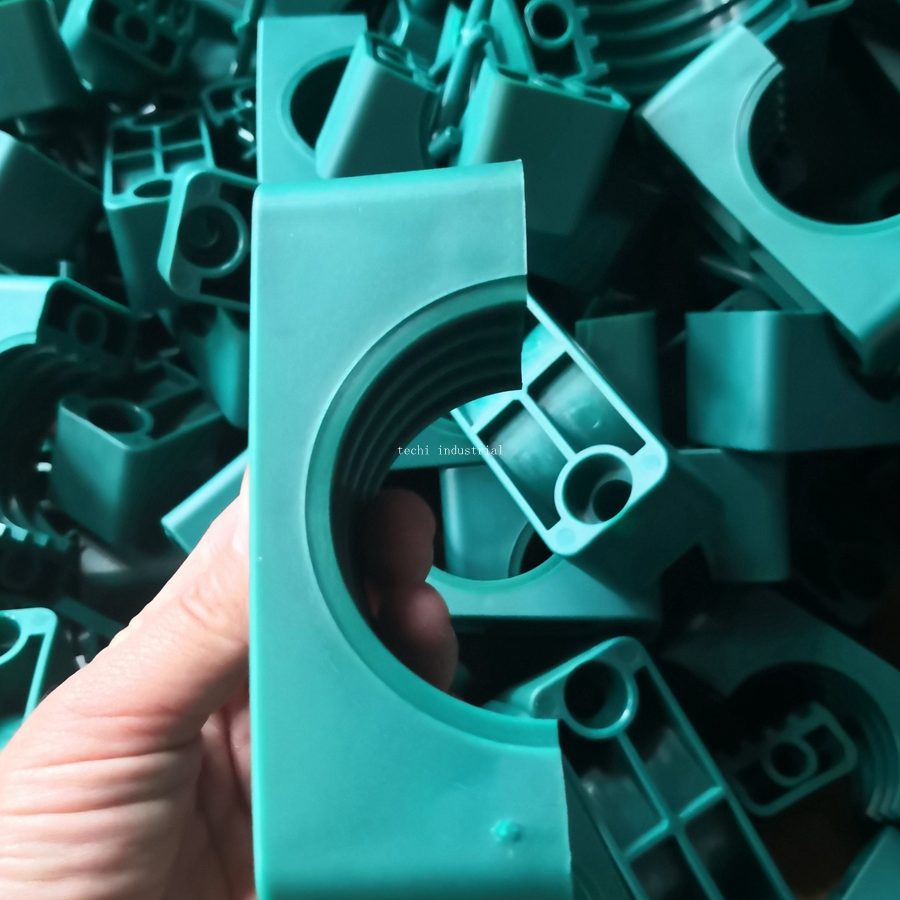

Clamp body/halves material:
Polypropylene, aluminium, glass fibre reinforced polyamide and polypropylene with rubber grommet.
Clamps for inch-pipes are also available.

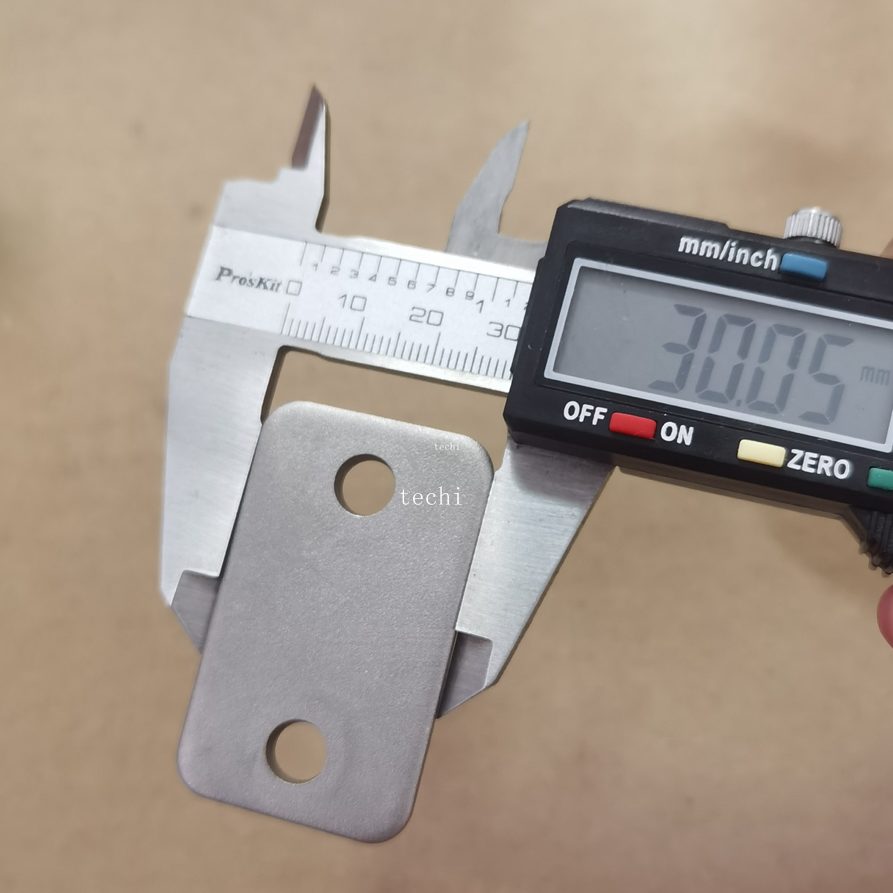

Cover plate and bottom plate:
carbon steel,phosphated,zinc/nickel plated
Stainless steel AISI304
Stainless steel AISI316
Hydraulic Pipe clamp range:
Light series clamp can be supplied in 8 series for normal mechanical stress,tube O.D 6 to 102mm.
(6~102mm)
Heavy series clamps can be supplied in 11 series for high mechanical stress,Tube O.D 6 to 508mm.( 6~508mm)
Twin pipe clamp series can be supplied in 5 series for normal mechanical stress,tube O.D 6 to 42mm.( 6~42mm)
| Properities | Polypropylene(PP) | Polyamide(PA) | Aluminium(AL) |
| Density | 0.906/cm³ | 1.12-1.15g/cm³ | 2.9-3.2g/cm³ |
| Flexural Deflection | 36N/mm² | 130-200N/mm² | 170N-400N/mm² |
| Impact Resistance | No Break | No Break | No Break |
| Compressive strength | 90N/mm² | 120N/mm² | 60-80HB5/250 |
| Modulus of Elasticity |
1500N/mm² | 3000N/mm² | 70000N/mm² |
| Tensile Strength | 25-35N/mm² | 80-90N/mm² | 180-300N/mm² |
| Temp.Resistance | -30~+90℃ | -40~120℃ | -75~300℃ |
| Colour | Dark Green or customized colour |
Black,Green or customized colour |
Silver white |
Standard Hydraulic Pipe Clamp Specification:

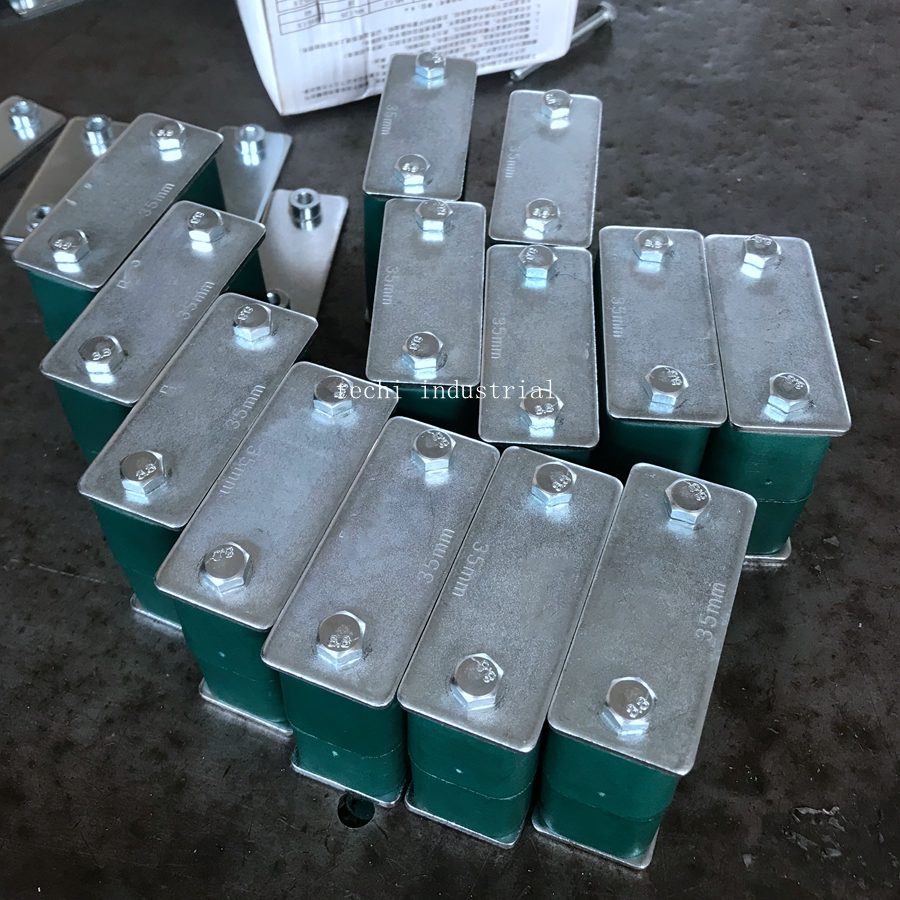

Hydraulic Standard Pipe Clamp factory and package：
