ground joint coupling complete set
1.Stem coupling material: white zinc plated steel iron.
2. Coupling size: from 1/2″ to 4″
3. parts: Zinc Plated Iron Wing Nut, Female NPT,BSP Spud,Hose stem
4. Thread type:BSP, NPT

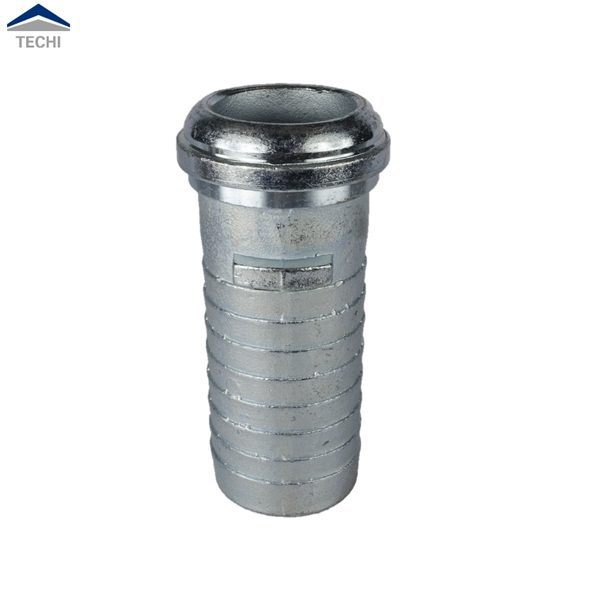

Ground Joint Coupling boss stem hose complete set
Ground Joint Hose Couplings are designed for compressed air, steam, or fluid hose service where higher working pressure and increased hose coupling retention are required. A hammer type female swivel nut with coarse thread allows for quick attachment to equipment. A spud adapter converts the coupling to pipe thread.
The ground joint hose coupling set is a three piece system featuring a hose shank, over-sized female swivel nut, and spud adapter.
ground-joint couplings and boss couplings, these fittings are designed for high-pressure steam heating, humidification, and washdown applications. Insert the barbed end of the fitting into rubber hose, then position the interlocking clamp over the hose and bolt into place with a torque wrench
Ground Joint Couplings are available in a larger size range than many other hose coupling styles.
|Product Name||Steam ground joint Coupling|
|Material||Carbon steel zn plated|
|Pressure||Working pressure: 10bar Max test pressure: 16bar|
|Parts||Wing Nut, Female NPT Spud,Hose stem|
Sizes Range from 1/4″ to 6″ Hose ID
