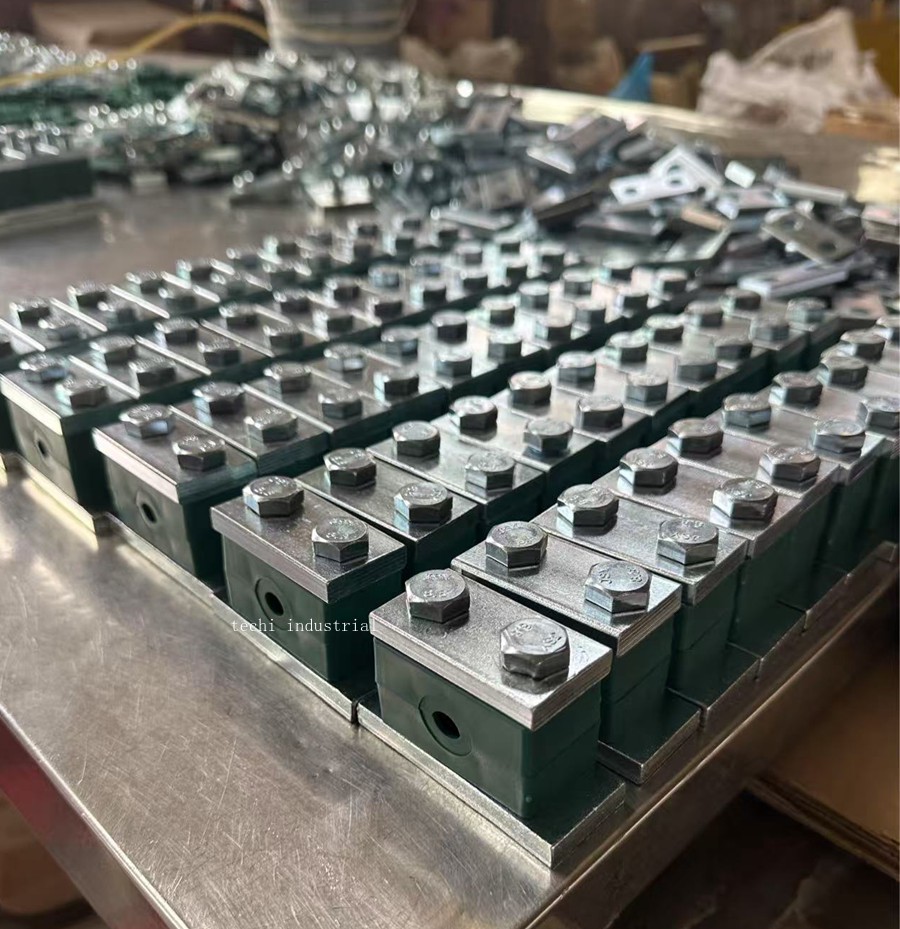

As the top quality pipe clamps manufacturer and supplier in China,Techi Industrial produce high quality DIN 3015-2 Heavy Duty Pipe Clamp,Heavy Series Tube Clamps, with excellent performance of weathering and chemical resistance, anti-Vibration. Here below is the photo album of heavy duty pipe clamps, people who is interested can see the real product pictures of our DIN 3015-2 Heavy Series pipe clamps.
Heavy duty hydraulic pipe clamps are manufactured according to German standard DIN 3015 Part-2, this heavy series of pipe clamps are designed as a construction unit for the installation of tubes, pipes, hoses and other flexible or rigid components. Heavy duty pipe clamps are known as hydraulic heavy duty tube clamps or heavy duty hose clamps or heavy duty line clamps,hydraulic heavy series pipe clamp also.
Clamp bodies of Heavy duty pipe clamps are manufactured from various PP Polypropylene,PA Polyamide pipe clamp or AL aluminium pipe clamp, Mounting hardware parts as cover plate, weld base plate, bolts are available for material mild steel galvanised carbon steel, stainless steel, hot galvanizing carbon steel etc.
Heavy duty pipe clamps / heavy duty tube clamps / heavy pipe clamps according to DIN 3015-2:
- Size range of heavy duty pipe clamps:
The sizes of heavy duty tube clamps are fit for tube / pipe size O.D. 6mm -508mm.
2) Assembly types of heavy duty pipe clamps:
H-G1 /H-G2: Hexagon head bolts / Hexagon socket bolts + cover plate + clamp body + welded base plate;
H-G3 /H-G4, rail nut heavy duty pipe clamps: hexagon head bolts / hexagon socket bolts + cover plate + clamp body + rail nuts;
H-G5, Stacking heavy duty pipe clamps: Stacking bolts + safety locking plates + clamp body, max. 5 layers.
H-G6/H-G7: hexagon head bolts / hexagon socket bolts + cover plate + clamp body;
H-G8 / H-G9 elongated heavy duty tube clamp: Hexagon head bolts / Hexagon socket bolts + cover plate + clamp body + elongated welded base plate;
H-G10: Hexagon head bolts + twin cover plate + twin clamp body + twin welded base plate;
H-G11: Hexagon head bolts + cover plate + clamp body + + welded base plate;
H-G12, Japanese standard heavy duty tube clamp: Hexagon head bolts+cover plate+clamp body+ welded base plate (Japanese standard);
H-G13, heavy twin series pipe clamps: Hexagon head (socket) bolts + cover plate + clamp body + welded base plate.3) Types of heavy duty pipe clamps body:
PP grooved inside / smooth inside;
PA grooved inside / smooth inside;
Al grooved inside heavy duty pipe clamp body.4) Materials of heavy duty pipe clamps components:
Cover Plate & Welded base plate & Bolts: Galvanized Carbon steel(mild steel) / stainless steel(304/316)
Clamp Body: Polypropylene(PP), Polyamide(PA), Aluminum(Al), steel, stainless steel, POM.
Clamp body in aluminum makes heavy duty Aluminum tube clamps, which is used for high vibration and high tempreature applications.5) Features of heavy duty pipe clamps produced by Techi Industrial:
With strong strength, accurate dimensions, good corrosion resistance and durable in use, and good surface quality. Heavy duty pipe clamps are for tube and pipe installation in applications under high pressure.
Heavy series pipe clamp sizes:
|Techi industrial Co., manufacture hydraulic pipe clamps to fix pipe with outer diamater:|
|Size 6-16 mm||Heavy Duty Hydraulic Pipe Clamp Single Hole 6mm 8mm 10mm
12mm 12.7mm 13.5mm 14mm 15mm 16mm 17.2mm 18mm
|Size 18-28 mm||Heavy duty hydraulic tube clamp size 18mm 19 mm 20 mm
21.3 mm 22 mm 23 mm 25 mm 26.9 mm 28 mm 30 mm
|Size 30-42 mm||Heavy series hydraulic pipe clamp size 30 mm 32 mm 33.7 mm
35 mm 38 mm 40 mm 42 mm
|Size 45-70 mm||Heavy duty hydraulic pipe clamp single hole size 45 mm 48.3 mm
50mm 51mm 52mm 55mm 57mm 60.3mm 63mm 65mm 70 mm
|Size 73-90mm||Polyamide Heavy duty hydraulic pipe clamp single hole size 70mm 73mm
75mm 76.1mm 80mm 82.5mm 88.9mm 90mm
|Size 97-127mm||Polypropylene Heavy duty hydraulic pipe clamp single hole size
97mm 100mm 101.6mm 108mm 114.3mm 127mm
|Size 133-168mm||Aluminium Heavy duty hydraulic pipe clamp single hole size
133mm 140mm 150mm 152.4mm 159mm 165.1mm 168.3mm
|Size 168-220mm||Polypropylene Heavy duty hydraulic pipe clamp single hole size
168.3mm 177.8mm 193.7mm 203mm 219.1mm 220mm
HOT sales market for hydraulic tube pipe clamp
Techi Industrial can manufacture quality hydraulic pipe clamp,tube clamp to suit your industries requirements.
Contact us for a quotation.
