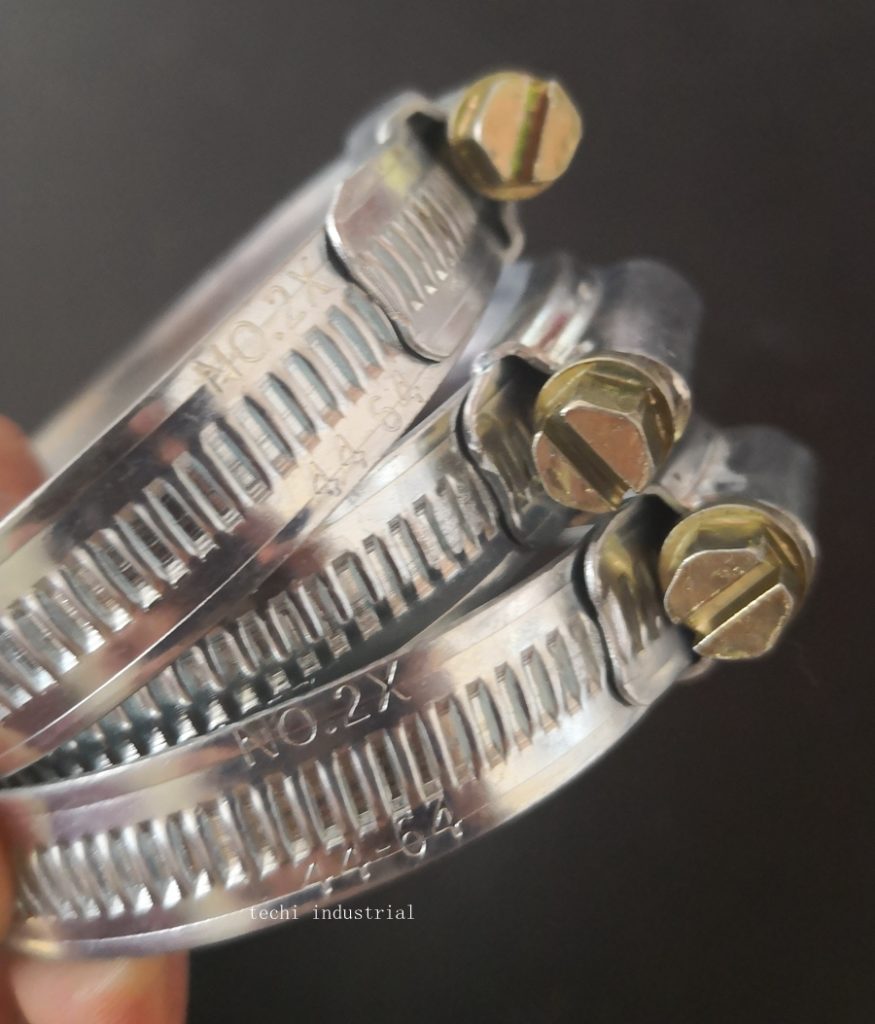

Mild steel hose clamp
1 Bandwidth:11.7mm
2 Material: W1//W2/W4
3 It is with non-slotted band.
Regarding the material, it can be divided into the following three types:
Materials:
W1–All is galvanized steel
W2–The screw is galvanized steel, others is AISI 304 series.
W4–All is stainless steel 304
Zinc Plated Hose Clamp 85-100MM (3 1/4”- 4”) 4X
Mild steel zinc plated galvanized British Style hose clamps is based on the BS-5315 specification. The three component design produces a robust clip optimizing free torque, with high final torque and the strong material allows the use of thinner band, thus giving band flexibility which readily conforms to the shape of the hose.
British type hose clamp 85-100MM material:
Materials:
W1–All is galvanised steel,zinc plated,mild steel
W2–The screw is galvanized steel, others is AISI304 series.
W4–All is Stainless steel 304

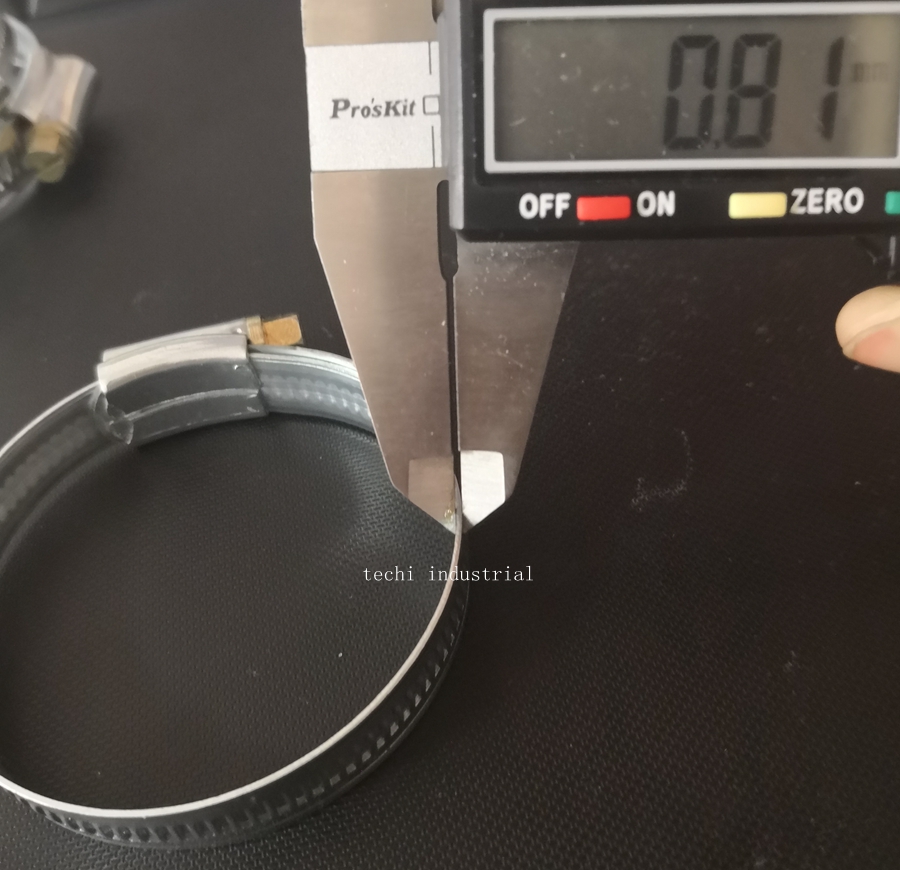

British type hose clamp is made of carton steel and stainless steel ,with the band width 9.7mm,11.7mm and thickness 0.8mm,0.9mm, with feature of high torsional resistance and compressive strength
The British type hose clamp can work of torque 5-10Nm, high compressive strength of 1.3Mpa, widely used in the automobile industry, shipbuilding industry, machinery industry in various equipment oil, water, gas pipeline, They are ideal accessories for various hoses connecting and fastening.
Features:
*Simple housing structure
*Excellent leak tightness
*Uniform pipe seal
*Wide range of diameter
*Good pipe protection
*High mounting force
British Hose Clip 70-90MM (2 ¾”-3 ½”) 4 specification and size:
9.5-12MM (3/8-1/2”) 000
11-16MM (1/2”-5/8”)M00
13-20MM (1/2”-3/4”) 00
16-22MM (5/8”-7/8”) 0
18-25MM (3/4”-1”) 0X
22-30MM (7/8”-1 1/8”) 1A
25-35MM (1”-13/8”) 1
30-40MM (1 1/8”-1 5/8”) 1X
32-45MM (1 ¼”-1 ¾”) 1M
35-50MM (1 3/8”-1 7/8”) 2A
40-55MM (1 ½”-2 1/8”) 2
45-60MM (1 ¾”-2 3/8”) 2X
55-70MM (2”- 2 ¾” ) 3
60-80MM (2 3/8”- 3 1/8”) 3X
70-90MM (2 ¾”-3 ½”) 4
85-100MM (3 1/4”- 4”) 4X
90-120MM (3 ¾”-4 ½”) 5
110-140MM (4 ¼”-5 ½”) 6
130-150MM (5”- 5 ¾”) 6X
135-165MM (5 ¼”-6 ½”) 7
158-190MM (6 ¼”- 7 ½”) 7 ½”
184-216MM (7 ¼”-8 ½”) 8 ½”
210-242MM (8 ¼”-9 ½”) 9 ½”
235-267MM (9 ½”- 10 ½” ) 10 ½”
260-292MM (10 ¼”-11 ½”) 11 ½”
286-318MM (11 ¼”- 12 ½”) 12 ½”
Mild steel zinc plated galvanized steel British hose clamps
85-100MM (3 1/4”- 4”) 4X are quick and easy to use, providing the maximum amount of flexibility and convenience. The clips make installation, disassembly, and reassembly a breeze; they are commonly used in many different applications, such as automotive, offshore and industrial use.agriculture, industry home DIY projects,pharmaceutical, marine, aviation, petro chemical, food production and more.
