Partial Head Stainless Steel Germany Hose Clamp With Spring
Material:zinc plated,galvanised steel iron,electroplating ,stainless steel SUS304 201 430 316
Screw:hexagon screw,Phillips screw
Thickness of hose clamps band:0.6mm 0.7mm 0.8mm
Germany type hose clamp W1 W2 W4 W5 torque:5~10N.M
Stainless steel 304 Worm drive hose clamp with spring
Tianjin Techi industrial CO., is one of the eminent manufacturers of worm drive german type hose clamp band 9mm/12mm, german type hose clamp band 12mm, german type hose clamp W1, galvanized zinc plated german type hose clamp, stainless steel 201 german type hose W2, stainless steel 304 316 german type hose clamp W4 W5,worm gear hose clamp,worm drive hose clamp,hose clip,germany style hose clamp manufacturer and exporter in CHINA
Material of Worm drive hose clamp with spring
W1: Completely Zinc-coated Steel,galvanized steel,carbon steel,mild steel
W2: Band–AISI430 Housing–AISI430 With Palted Screw
Band–AISI430 Housing–AISI430 Screw–AISI410
W4: Band–AISI304 Housing–AISI430 Plated Screw
Band–AISI304 Housing–AISI304 Screw–AISI302
W5: Band–AISI316 Housing—AISI316 Screw:stainless steel AISI316

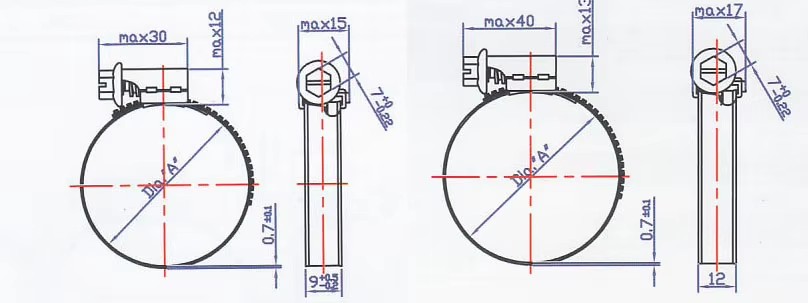

Worm drive hose clamp with spring size and drawing:
| Inch | Metric | |
| Decimal | Fraction | |
| 0.3”-0.5” | 5/16”-15/32” | 12 x 8-12mm |
| 0.4”-0.6” | 25/64”-5/8″ | 12 x 10-16mm* |
| 0.5”-0.8” | 15/32”-25/32” | 12 x 12-20mm |
| 0.6”-1” | 5/8”-63/64” | 12 x 16-25mm/16-27mm |
| 1”-1.6” | 63/64”-1 37/64” | 12 x 25-40mm |
| 1.25”-2” | 1 17/64”-1 31/32” | 12 x 32-50mm |
| 1.6”-2.7” | 1 37/64”-2 23/64” | 12 x 40-60mm |
| 2”-3.1” | 1 31/32”-2 3/4″ | 12 x 50-70mm |
| 2.7”-2.7” | 2 23/64”-3 5/32” | 12 x 60-80mm |
| 3.1”-3.6” | 2 3/4″-3 35/64” | 12 x 70-90mm |
| 2.7”-3.9” | 3 5/32” 3 15/16” | 12 x 80-100mm |
| 3.6”-4.3” | 3 35/64”-4 21/64” | 12 x 90-110mm |
| 3.9”-4.7” | 3 15/16” 4 23/32” | 12 x 100-120mm |
| 4.3”-5.1” | 4 21/64”-5 1/8″ | 12 x 110-130mm |
| 4.7”-5.8″ | 4 23/32”-5 33/64” | 12 x 120-140mm |
| 5.1”-6” | 5 1/8″-5 29/32” | 12 x 130-150mm |
| 5.8″-6.3″ | 5 33/64”-6 19/64” | 12 x 140-160mm |
| 6”-6.7” | 5 29/32”- 6 11/16” | 12 x 150-170mm |
| 6.3″-7.1” | 6 19/64”-7 3/32” | 12 x 160-180mm |
| 6.7”-7.5” | 6 11/16”-7 31/64” | 12 x 170-190mm |
| 7.1”-7.9” | 7 3/32”-7 7/8″ | 12 x 180-200mm |
| 7.5”-8.3” | 7 31/64”-8 17/64” | 12 x 190-210mm |
| 7.9”-8.7” | 7 31/64”-8 21/32” | 12 x 200-220mm |
| 8.3”-9” | 8 17/64”-9 1/16” | 12 x 210-230mm |

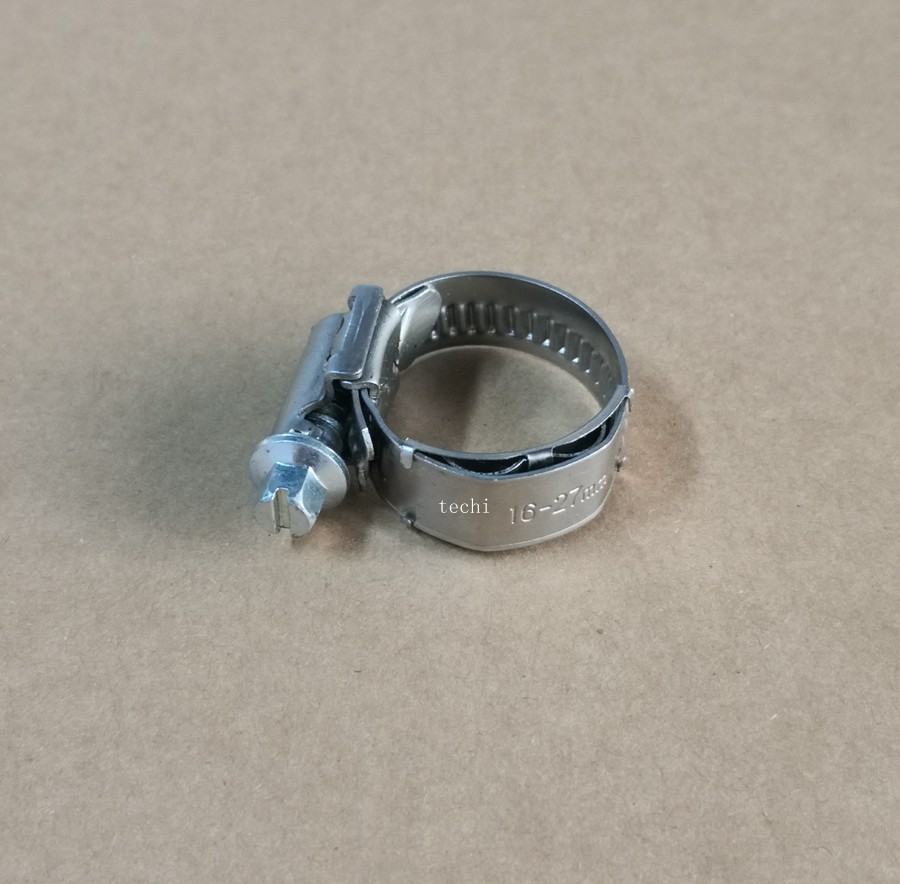

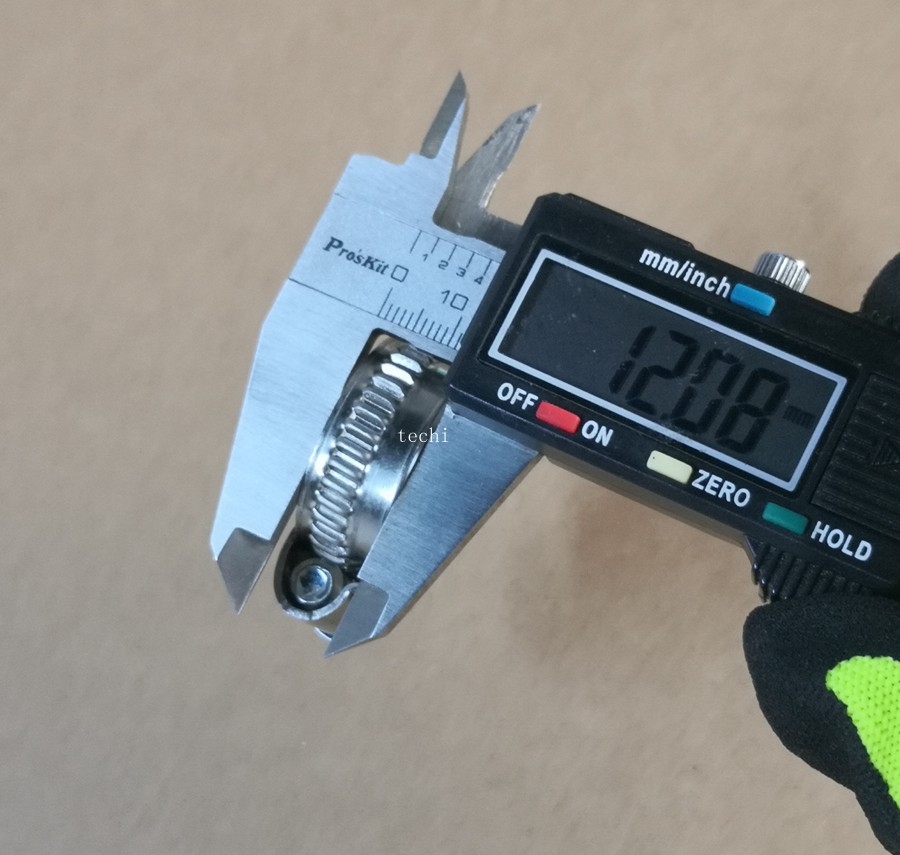

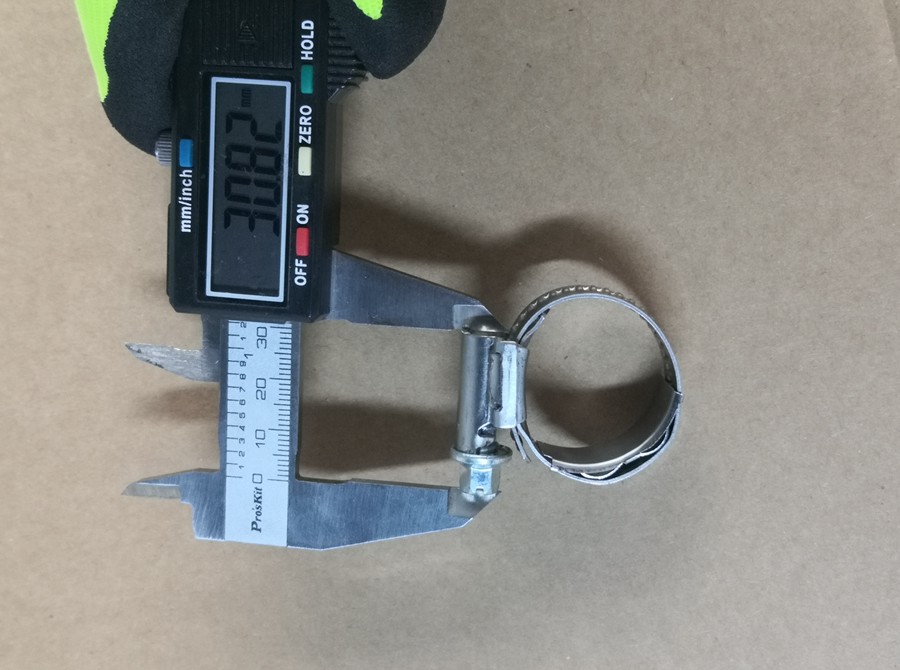

Worm drive hose clamp with spring band width 12mm pictures:
Germany type hose clamp 9mm band thickness:
Stainless steel 201 430 german type hose clamp package：
Partial Head Stainless Steel Germany Hose Clamp With SpringWidly used in Auto,Gas Industry,petrochemical industry,pharmacy,food wine sewage treatment,Purification dust removal auto parts and other machine parts.
Worm drive hose clamp with spring insert is equipped with a spring insert on the inside of the clamp band. When tightening the screw the spring is loaded and stores sufficient clamping force to ensure a long-lasting automatic re-tensioning effect.
| Payment & Shipping Terms | Supply Capacity | ||
| Payment Term: | L/C, Western Union, D/P, T/T | Production Capacity: | 80000 Per Day |
| MOQ: | 500 Piece/Pieces | Packing: | 100/carton |
| Means of Transport: | Land, Ocean,Air | Delivery Date: | 15 working day |
HOT sales market for Worm gear hose clamp,germany type hose clamp:
| Russia | Ukraine | Kuwait | Bahrain | Qatar |
| UAE | Saudi Arabia | Oman | Dubai | Malaysia |
| Vietnam | Indonesia | Vietnam | United Kingdom | France |
| Brazil | Ecuador | Colombia | USA | Chile |
| Argentina | Germany | Nigeria | Sudan | Jordan |
| India | Netherlands | South korea | Turkey | Thailand |
