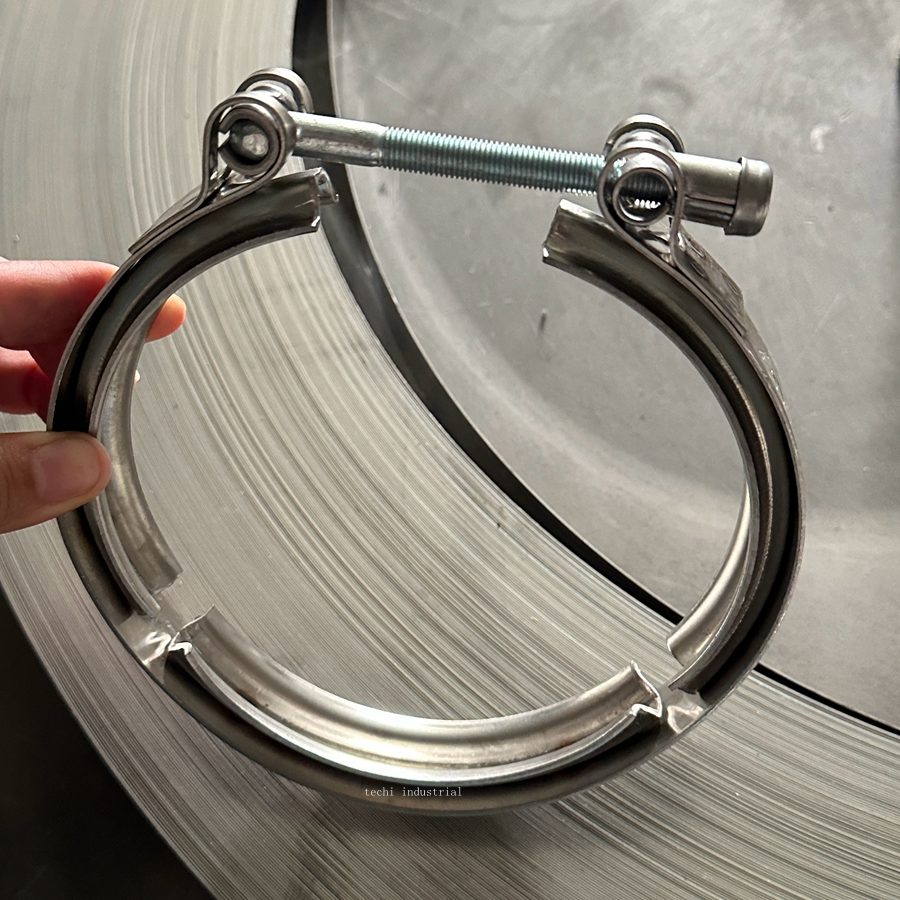

Stainless steel V-Band Clamp 2.0″ 2.5″, W4 304SS
Heavy duty Auto exhaust V band clamp
Auto exhaust V band clamp
one clamp and two flanges
Material: ss304
Size: 2″ 2.5″ 3″ 3.5″ 4″ 5″ 6″ 7″ 8″ 10″ 12″
Stainless steel V-Band Clamp 2.0″ 2.5″, W4 304SS
Techi Industries high quality Stainless Steel 2″,2.5″ 3″ 3.5″ 4″ V-Band clamp has been designed to specifically work for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers, Keating Machine
V band clamp material:
W2-nail and nut are made of galvanized iron, V part,clamp band are made of stainless steel
W4-nail, nut V part,clamp band are made of stainless steel SUS304 SS316.
Stainless steel V-Band Clamp discription:
- Used to secure coupling for connecting flanged joints
- Available in standard and custom diameter and V segments.
- T-Bolt design
- Bandwidth varies from clamp to clamp depending on application
- 304 Stainless Steel band
- 304 316 Stainless Steel bolt and locknut
Stainless steel V band clamps size:
| Nominal Diameter (in) | V-Insert A | V-Insert B | V-Insert C | Band D | Band E |
| 2.88″ | 0.060 | 0.207 | 0.281 | 0.035 | 0.750 |
| 3.21″ | 0.050 | 0.262 | 0.141 | 0.035 | 0.750 |
| 3.82″ | 0.077 | 0.207 | 0.281 | 0.040 | 0.875 |
| 4.06″ | 0.077 | 0.239 | 0.281 | 0.050 | 0.875 |
| 4.13″ | 0.050 | 0.262 | 0.141 | 0.035 | 0.750 |
| 4.19″ | 0.050 | 0.400 | 0.281 | 0.040 | 0.875 |
| 4.25″ | 0.050 | 0.400 | 0.281 | 0.040 | 0.875 |
| 4.5″ | 0.077 | 0.207 | 0.281 | 0.040 | 0.875 |
| 4.61″ | 0.050 | 0.156 | 0.281 | 0.035 | 0.750 |
| 4.75″ | 0.050 | 0.400 | 0.281 | 0.079 | 0.875 |
| 4.81″ | 0.077 | 0.207 | 0.281 | 0.040 | 0.875 |
| 4.94″ | 0.050 | 0.181 | 0.281 | 0.035 | 0.750 |
| 5.25″ | 0.050 | 0.262 | 0.141 | 0.035 | 0.750 |
| 5.81″ | 0.077 | 0.207 | 0.281 | 0.062 | 0.875 |
| 5.88″ | 0.050 | 0.400 | 0.281 | 0.079 | 0.875 |
| 5.92″ | 0.090 | 0.293 | 0.296 | 0.050 | 0.875 |
