Worm Drive American Type Hose Clamp Bandwith 8mm
1 American type hose clamp band width:8mm
2 American type hose clamp Material:Stainless steel SS304 SS316
3 Screw:hexagon screw
4 Thickness of hose clamps band:0.6mm 0.7mm 0.8mm
5 Germany type hose clamp W1 torque:6N.M 7N.M 8N.M
American Type Hose Clamp W4 Bandwith 8mm
WD series worm drive American type hose clamp models are produced according to DIN 3017 standards.
Techi industrial produce American type hose clamps in material of galvnaized steel,stainless steel 201 304 316.
size:6-12mm 9-16mm 12-20mm 16-25mm 18-29mm
Clamp range: 18-32mm 21-38mm 21-44mm 27-51mm 33-57mm 40-64mm
44-67mm 46-70mm 52-76mm 60-83mm 65-89mm 68-92mm
78-101mm 91-114mm 105-127mm 118-140mm 130-152mm
125-165mm 140-180mm 150-190mm 163-203mm 188-230mm
218-256mm 240-280mm 271-311mm
Specification of American type hose clamp
Screw: 5/16″ hex-head. Plated carbon steel.
Band: 5/16″ 1/2″ band width. 201/301/304/316 stainless steel.
Housing: 201/304 316 stainless steel.
Brandwidth:8mm and 12.7mm OR12.5mm/14.2mm
Advantages at a glance
- Multi-range hose clamp
• Material: W1, W2, W3, W4 and W5
• Chromium VI free: compliant with ROHS, WEEE and ELV Environmental Directives
• Clamping range to DIN 3017: 8 – 16 mm up to 140 – 160 mm - Larger diameters on demand
American type clamp bandwidth 8mm size:
| 5/16″(8mm) Band width | ||||||||
| SAE SIZE | Dimension range in mm | Dimension range in inch | QTY/carton | Meast in cm | ||||
| 4 | 6-16 | 1/4″-5/8″ | 2500 | 38 | X | 27 | X | 19 |
| 5 | 7-17 | 1/4″- 11/16″ | 2500 | 38 | X | 27 | X | 24 |
| 6 | 8-22 | 5/16″- 7/8″ | 2500 | 38 | X | 27 | X | 24 |
| 8 | 10-25 | 3/8″- 1″ | 1000 | 38 | X | 27 | X | 17 |
| 10 | 10-27 | 3/8″- 1 1/16″ | 1000 | 38 | X | 27 | X | 24 |
| 12 | 13-32 | 1/2″ -1 1/4″ | 1000 | 38 | X | 27 | X | 24 |
| 16 | 13-38 | 1/2″ -1 1/2″ | 1000 | 38 | X | 27 | X | 24 |
| 20 | 19-44 | 3/4″ -1 3/4″ | 1000 | 38 | X | 27 | X | 29 |
| 24 | 26-51 | 1″ – 2″ | 1000 | 38 | X | 27 | X | 34 |
| 28 | 32-57 | 1 1/4″ -2 1/4″ | 1000 | 41 | X | 32 | X | 31 |
| 30 | 35-60 | 1 3/8″ -2 3/8″ | 1000 | 41 | X | 32 | X | 31 |
| 32 | 38-63 | 1 1/2″ -2 1/2″ | 1000 | 41 | X | 32 | X | 35 |
| 36 | 45-70 | 1 3/4″ – 2 3/4″ | 1000 | 41 | X | 37 | X | 35 |
| 44 | 57-82 | 2 1/4″ -3 1/4″ | 1000 | 41 | X | 37 | X | 35 |
| 48 | 64-89 | 2 1/2″ -3 1/2″ | 500 | 41 | X | 37 | X | 30 |
Application of worm drive American type hose clamp
Mainly used in automobiles, tractors, ships, gasoline engine, and so on.
Hose connector of each kind of mechanical device for oil, gas, hydraulic.
Join parts of various types of rubber tube.
| Payment & Shipping Terms | Supply Capacity | ||
| Payment Term: | L/C, Western Union, D/P, T/T | Production Capacity: | 80000 Per Day |

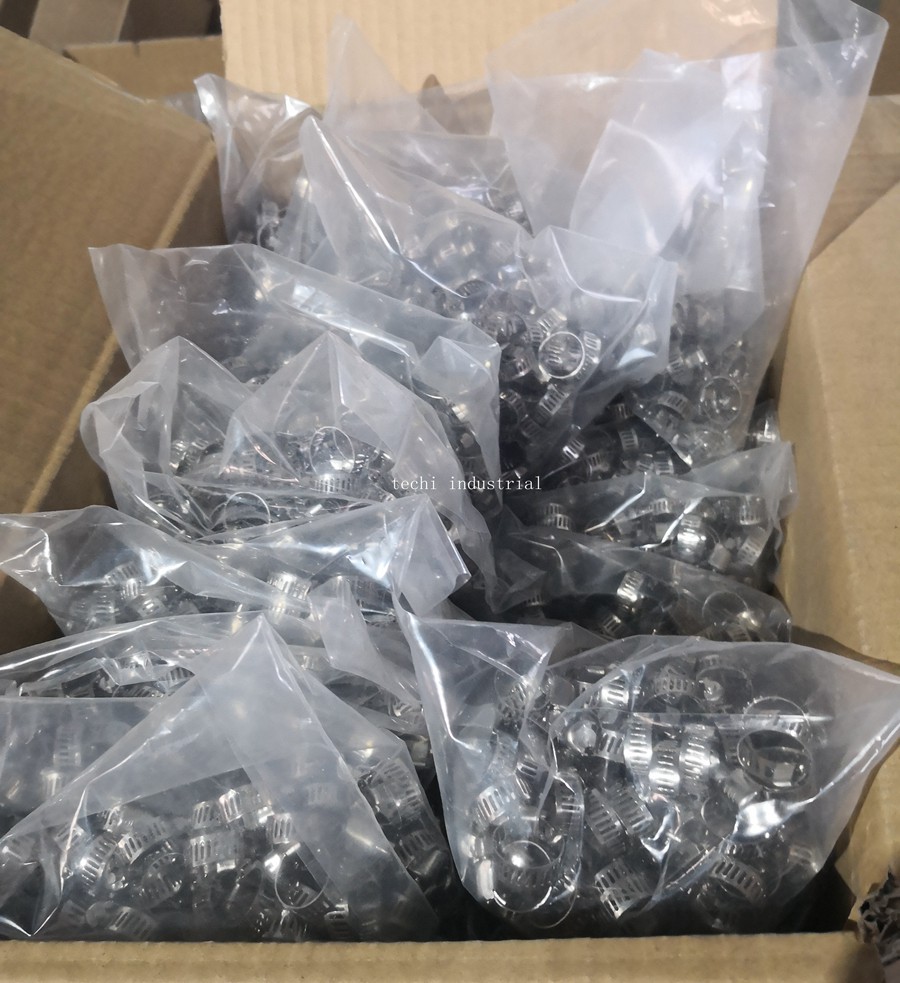

| MOQ: | 500 Piece/Pieces | Packing: | 100/carton |
| Means of Transport: | Land, Ocean,Air | Delivery Date: | 15 working day |
