Stainless steel SS304 mini clamp 9-11mm
1) Band Width: 9mm
2) Sizes: 7-9mm to all
3) Materials: Galvanized Steel,Mild steel(MD) Stainless Steel 304 316
4) OEM order is acceptable
5) Certification: ISO9001, SGS, CTI, ROHS
Stainless steel SS304 mini clamp size 9-11mm
Tianjin techi industrial and trade co., is top stainless steel 304 316 mini screw clamp,mini clip,mini fuel clamp,mini clamp with screw manufacturer in China,clamps are all in factory wholesale price.
Screw Hose Clamp size 9-11mm,mini petrol pipe clamp 9-11mm,zinc plated mini screw hose clamp 9-11mm,fueline clip 9-11mm,soft hose clamp size,small diameter clamp size 9-11mm,zinc plated steel hose clamp size 9-11mm
Techi stainless steel Mini Standard clamp is particularly suitable for use on small, thin-walled hoses. This little clamp provides an excellent clamping force well over screwless clamps.
Mini screw clamp specification and drawing:
| Size | Band Width | Pcs/bag | Pcs/carton | Pack Size |
| mm | mm | cm | ||
| 7-9 | 9 | 100 | 2000 | 32*27*14 |
| 8-10 | 9 | 100 | 2000 | 32*27*14 |
| 9-11 | 9 | 100 | 2000 | 32*27*14 |
| 10-12 | 9 | 100 | 2000 | 38*27*14 |
| 11-13 | 9 | 100 | 2000 | 38*27*14 |
| 12-14 | 9 | 100 | 2000 | 38*27*14 |
| 13-15 | 9 | 100 | 2000 | 38*27*17 |
| 14-16 | 9 | 100 | 2000 | 38*27*17 |
| 15-17 | 9 | 100 | 2000 | 38*27*17 |
| 16-18 | 9 | 100 | 2000 | 38*27*17 |
- Diameter Range (A) mm 9 – 11
- Diameter Range (A) inch 0.35″-0.45″
- Band Width (B) mm – inch 9.0 – 0.35″
- Band Thickness (C) mm – inch 6 – 0.024″
- Screw 7mm A/F
- Band/Housing/Screw Material Stainless steel 304
Stainless steel 304 mini clamp,mini clip with screw sizes:7-9mm,8-10mm,9-11mm.10-12mm,11-13mm,12-14mm,13-15mm,14-16mm,15-17mm,16-18mm,17-19mm,18-20mm,19-21mm,20-22mm
21-23mm,22-24mm,23-25mm,24-26mm,25-27mm,26-28mm,27-29mm,28-30mm,29-31mm,30-32mm,31-33mm,32-34mm,33-35mm,34-36mm,35-37mm,36-38mm,37-39mm,38-40mm etc.
Material:
| Material | W1 | W2 | W4 |
| Band | galvanized steel | 201, 301, 304 stainless steel | 201, 301, 304 stainless steel |
| Housing | galvanized steel | galvanized steel /stainless steel | 201, 301, 304 stainless steel |
| Screw | galvanized steel | galvanized steel | 201, 301, 304 stainless steel |

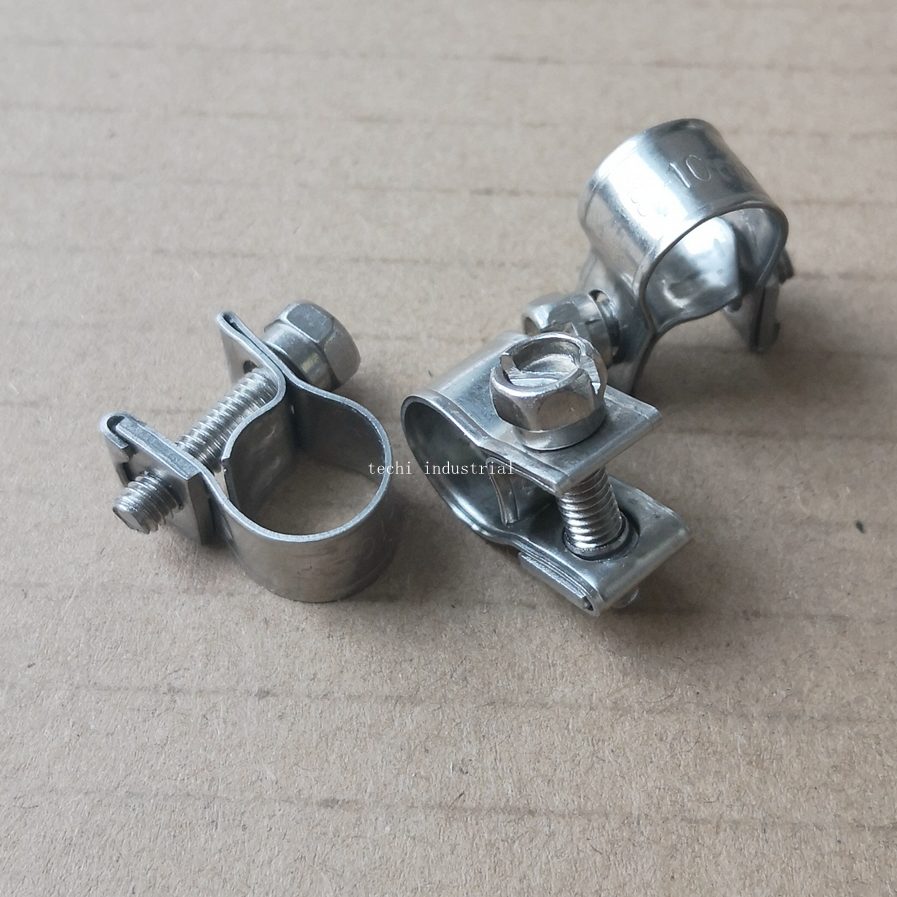

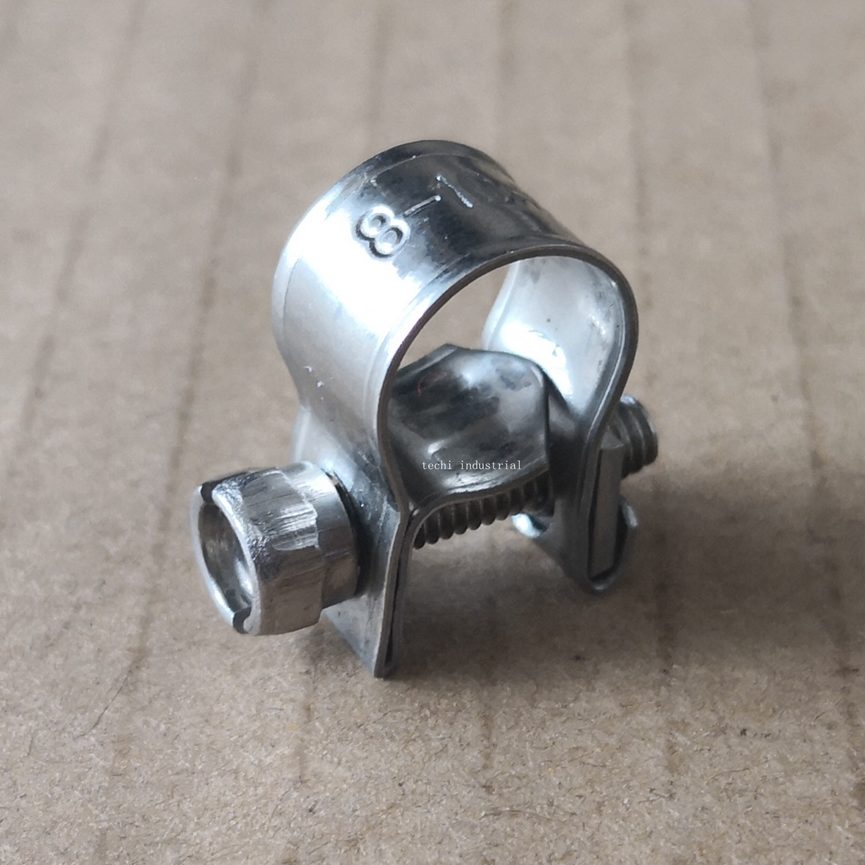

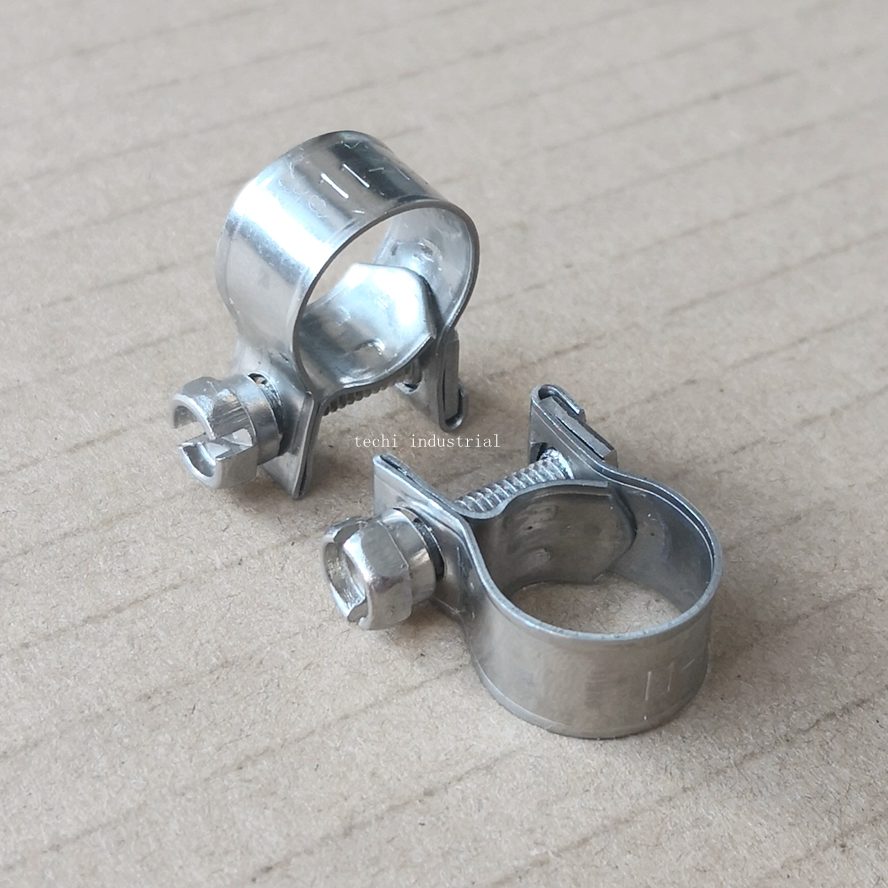

Stainless steel 304 mini clamp size 9-11mm factory pictures and measurement:

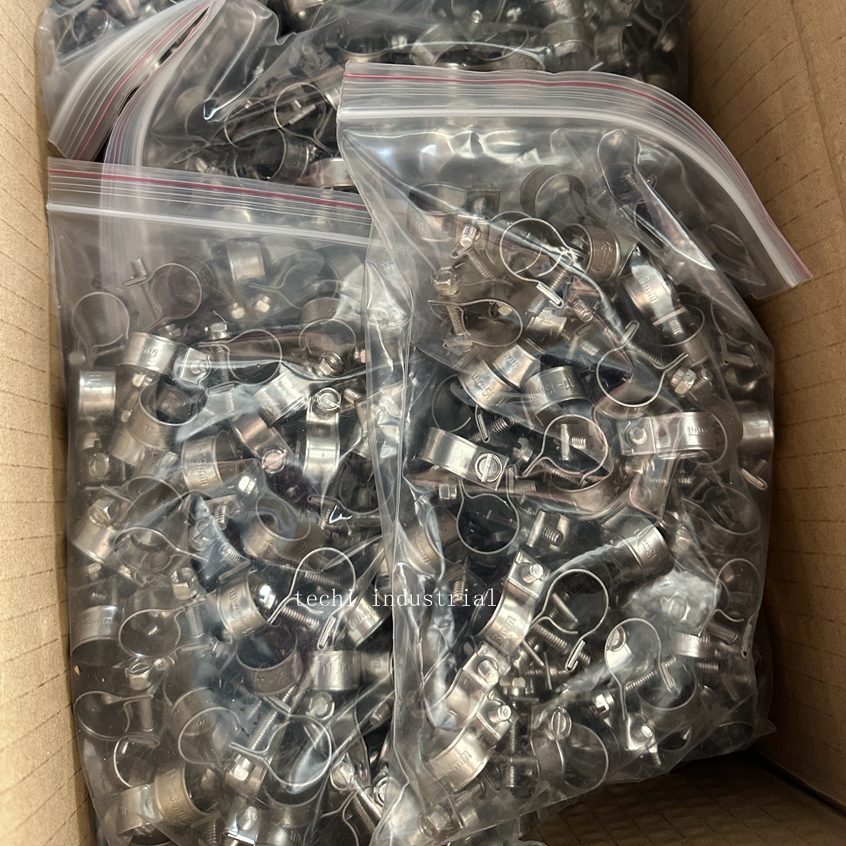

Stainless steel Mini Screw Hose clamp size 9-11mm factory and package pictures:
Mini Screw Hose clamps, Nut & Bolt, Petrol Pipe or Fueline Clips are particularly suitable for soft hoses and small diameters. The clamp forms a complete circle and has smooth edges. These hose clamps are made from Zinc Plated Steel,stainless steel ss304 ss316.
Techi Mini Standard clamp is particularly suitable for use on small, thin-walled hoses. This little clamp provides an excellent clamping force well over screwless clamps.
