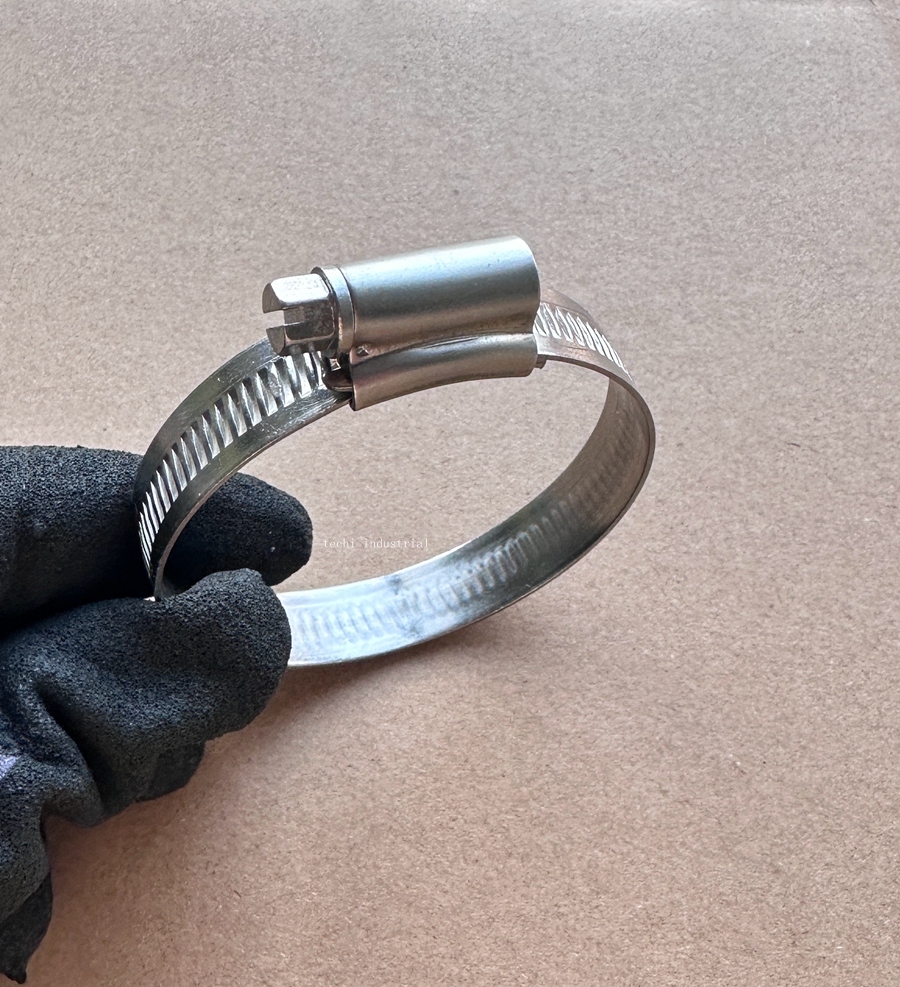

SS304 316 American Type Hose Clamp 1-1/4″

1 SS304 316 hose clamp band width:8mm,12.7mm

2 SS hose clip Material:Stainless steel SS304 SS316

3 Screw:hexagon screw

4 Thickness of hose clamps band:0.6mm 0.7mm 0.8mm

5 SS hose clip torque:6N.M 7N.M 8N.M

SS304 316 American Type Hose Clamp 1-1/4″ :

SS304 316 hose clip,American type hose clamp 1-1/4″ size 18-32mm are produced according to DIN 3017 standards.

Specification of American type hose clamp

Screw: 5/16″ hex-head. Plated carbon steel.
Band: 5/16″ 1/2″ band width. 201/301/304/316 stainless steel.
Housing: 201/304 316 stainless steel.

Brandwidth:8mm and 12.7mm OR12.5mm/14.2mm

Advantages at a glance

Multi-range hose clamp
• Material: W1, W2, W3, W4 and W5
• Chromium VI free: compliant with ROHS, WEEE and ELV Environmental Directives
• Clamping range to DIN 3017: 8 – 16 mm up to 140 – 160 mm
Larger diameters on demand

SS304 316 American Type hose clamp bandwidth 8mm size:

5/16″(8mm) Band width
SAE SIZE	Dimension range in mm	Dimension range in inch	QTY/carton	Meast in cm
4	6-16	1/4″-5/8″	2500	38	X	27	X	19
5	7-17	1/4″- 11/16″	2500	38	X	27	X	24
6	8-22	5/16″- 7/8″	2500	38	X	27	X	24
8	10-25	3/8″- 1″	1000	38	X	27	X	17
10	10-27	3/8″- 1 1/16″	1000	38	X	27	X	24
12	13-32	1/2″ -1 1/4″	1000	38	X	27	X	24
16	13-38	1/2″ -1 1/2″	1000	38	X	27	X	24
20	19-44	3/4″ -1 3/4″	1000	38	X	27	X	29
24	26-51	1″ – 2″	1000	38	X	27	X	34
28	32-57	1 1/4″ -2 1/4″	1000	41	X	32	X	31
30	35-60	1 3/8″ -2 3/8″	1000	41	X	32	X	31
32	38-63	1 1/2″ -2 1/2″	1000	41	X	32	X	35
36	45-70	1 3/4″ – 2 3/4″	1000	41	X	37	X	35
44	57-82	2 1/4″ -3 1/4″	1000	41	X	37	X	35
48	64-89	2 1/2″ -3 1/2″	500	41	X	37	X	30

Stainless steel 304 American style hose clamp bandwidth 12.7mm size:

SAE Sizee	Range in inch	Range in mm	SAE Size	Range in inch	Range in mm
SAE10	1-1/16″	14-27mm	SAE48	3-1/2″	65-89mm
SAE12	1-1/4″	18-32mm	SAE52	3-3/4″	72-95mm
SAE16	1-1/2″	21-38mm	SAE56	3″-4″	78-101mm
SAE20	1-3/4″	21-44mm	SAE60	4-1/4″	84-108mm
SAE24	2″	27-51mm	SAE64	4-1/2″	91-114mm
SAE28	2-1/4″	33-57mm	SAE72	5″	103-127mm
SAE32	2-1/2″	40-63mm	SAE80	5-1/2″	118-140mm
SAE36	2-3/4″	46-70mm	SAE88	6″	130-152mm
SAE40	3″	52-76mm	SAE96	6-1/2″	143-165mm
SAE44	3-1/4″	59-82mm	SAE104	7″	155-178mm

Application of SS stainless steel hose clamp:

Mainly used in automobiles, tractors, ships, gasoline engine, and so on.

Hose connector of each kind of mechanical device for oil, gas, hydraulic.

Join parts of various types of rubber tube.

SS hose clip package and factory:

Payment & Shipping Terms		Supply Capacity
Payment Term:	L/C, Western Union, D/P, T/T	Production Capacity:	80000 Per Day
MOQ:	500 Piece/Pieces	Packing:	100/carton
Means of Transport:	Land, Ocean,Air	Delivery Date:	15 working day
