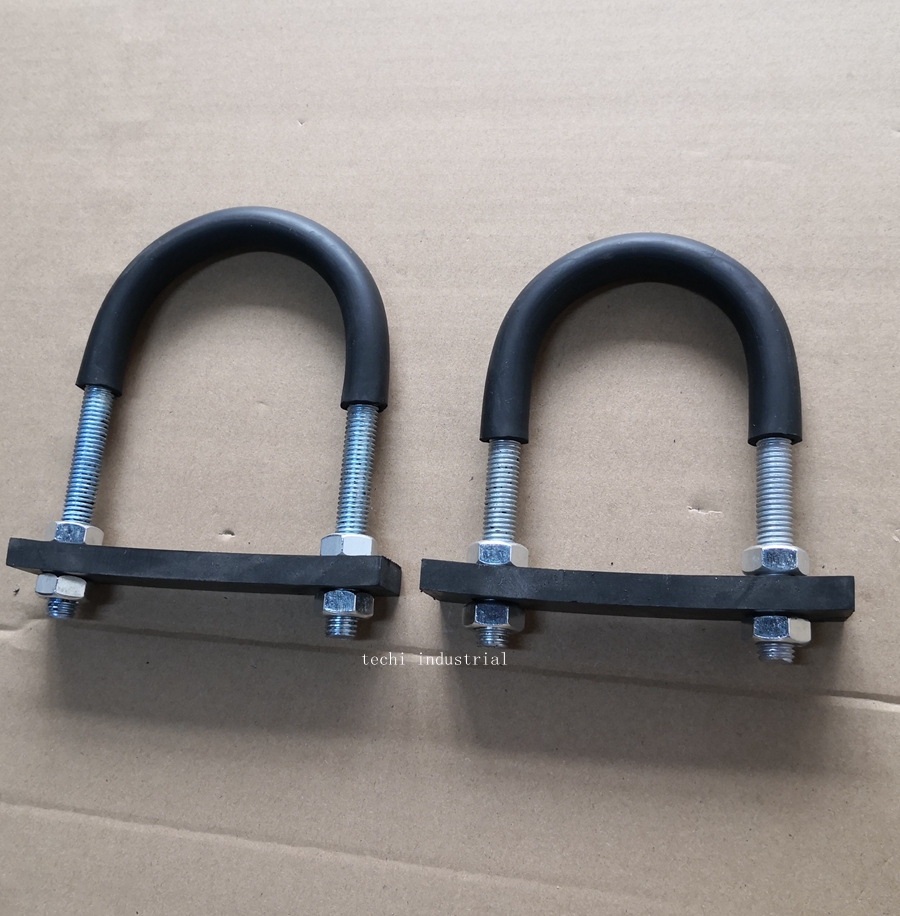

Rubber Lined U-bolt clamp
U bolt:Galvanised and stainless steel 304 316
Sleeve pad:Neoprene Rubber
Hardness: 65 shore A +/-5
Operating Temperature: -20 / +110 C
Rubber Lined U-bolt clamp
Tianjin Techi Industrial manufacture a range of Galvanised Mild Steel U-Bolt clamp,stainless steel 304 316 Galvanised Mild Steel Polyshrink U bolt clamp, Insulating Rubber Lined U-bolt with Backing pad.
Anti-Vibration Rubber Lined U-bolt is based U-Bolt is Galvanised Mild Steel U Bolt
– Reduce or eliminate noise and fatigue due to vibration of pipeline against the supporting structure
– Prevention of galvanic corrosion due to the contact of dissimilar metals in the presence of an electrolyte
– Prevention of wear and / or crushing of composite, thin wall or non-ferrous pipework
Sizes Available:

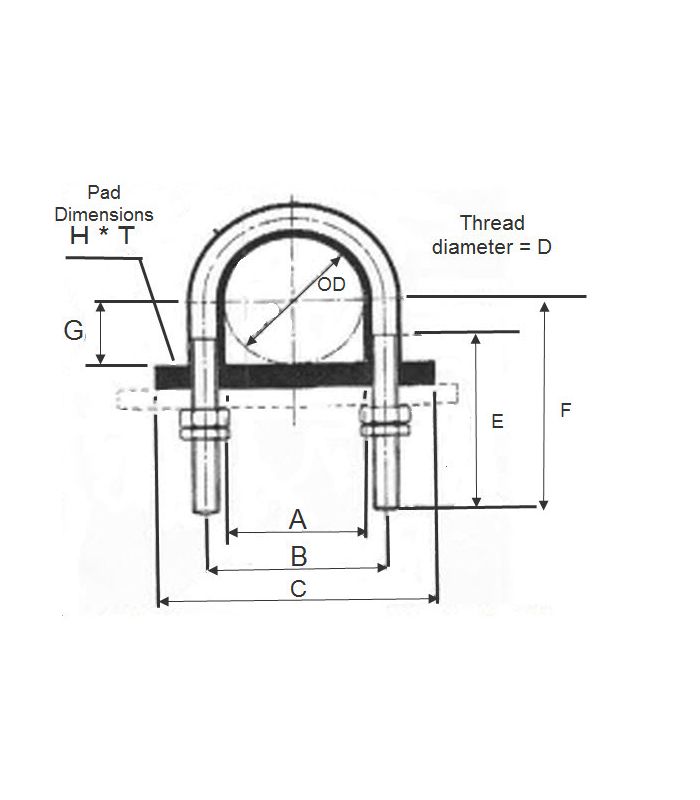

| Size | Pipe Nominal Bore (NB) | Pipe Outside Diameter (mm) | A (mm) | B (mm) | C (mm) |
| 23 MM ID (15 NB) | 15 | 21.3 | 23 | 37 | 60 |
| 29 MM ID (20 NB) | 20 | 26.9 | 29 | 43 | 70 |
| 36 MM ID (25 NB) | 25 | 33.7 | 36 | 50 | 75 |
| 36 MM ID (25 NB) – M8 | 25 | 33.7 | 36 | 52 | 77 |
| 50 MM ID (40 NB) | 32 | 42.4 | 50 | 69 | 95 |
| 54 MM ID (40 NB) – M8 | 40 | 48.3 | 54 | 70 | 95 |
| 57 MM ID (40 NB) | 40 | 48.3 | 57 | 75 | 100 |
| 69 MM ID (50 NB) – M8 | 50 | 60.3 | 69 | 87 | 110 |
| 69 MM ID (50 NB) | 50 | 60.3 | 69 | 87 | 110 |
| 81 MM ID (65 NB) | 65 | 76.1 | 81 | 102 | 135 |
| 94 MM ID (80 NB) | 80 | 88.9 | 94 | 115 | 140 |
| 107 MM ID (90 NB) | 90 | 101.6 | 107 | 128 | 155 |
| 120 MM ID (100 NB) | 100 | 114.3 | 120 | 141 | 170 |
| 145 MM ID (125 NB) | 125 | 139.7 | 145 | 166 | 195 |
| 175 MM ID (150 NB) | 150 | 168.3 | 175 | 200 | 235 |
U-Bolt Coat is a seamless, vulcanized, polyolefin material that is applied to a standard hot dipped, galvanized zinc plated or stainless steel u-bolt. They effectively control crevice corrosion on above ground piping by eliminating any possible metal to metal contact between the top and sides of the pipe. These coated u-bolts are also used with FRP Half Rounds to help control crevice corrosion on the bottom of a painted pipe. U-Bolt Coat type u-bolts can also help reduce vibrations and noise levels. The polyolefin coating is durable and displays excellent resistance to UV rays, heat, cold, abrasion and electrolysis.
Order rod poly coating U bolt clamps and rubber is moulded U bolt clamps
