Galvanized Hex bolt clamp 35-40mm
Material:Carbon steel(Zinc Plated), galvanized steel, stainless steel(AISI304 AISI316)
Bandwidth:20mm 32mm
Size:35-40mm
Galvanized Hex bolt clamp 35-40mm
Tianjin techi industrial co., Ltd is stainless steel 304 hex bolt hose clamp,Mangote Pipe Clamp,Suitable for heavy duty hoses or rigid material pipes, as well as PVC hoses.
| Material | stainless steel 304,zinc plated mild steel |
| Bandwidth | 32mm |
| Thickness | 2.0mm |
| Size | 29-32mm to 264-274mm |
Hex Bolt Hose Clamp size 35-40mm:
| Product | Size | Code | |||
| Min(mm) | Max(mm) | Inch | |||
| Galvanized Hex bolt clamp | 3/4” | 20 | 25 | 7/8″ x 1″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 7/8” | 29 | 32 | 1.1/16″ x 1.1/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 1” | 35 | 40 | 1.3/8″ x 1.1/2″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 1.1/4” | 39 | 47 | 1.1/2″ x 1.1/7″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 1.1/2” | 48 | 56 | 1.7/8″ x 2.1/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 1.3/4” | 54 | 62 | 2.1/8″ x 2.1/2″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 2” | 61 | 69 | 2.3/8″ x 2.3/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 2.1/4” | 67 | 75 | 2.5/8″ x 3″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 2.1/2” | 73 | 81 | 2.7/8″ x 3.1/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 2.3/4” | 79 | 87 | 3.1/8″ x 3.3/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 3” | 86 | 94 | 3.3/8″ x 3.3/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 3.1/4” | 92 | 100 | 3.5/8″ x 4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 3.1/2” | 99 | 107 | 3.7/8″ x 4.1/4″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 4” | 105 | 117 | 4.1/8″ x 4.5/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 4.1/4” | 111 | 123 | 4.3/8″ x 4.7/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 4.1/2” | 117 | 129 | 4.5/8″ x 5.1/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 4.3/4” | 124 | 136 | 4.7/8″ x 5.3/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 5” | 130 | 142 | 5.1/8″ x 5.5/8″ | SAE 1010/20 – Inox 304 |
| Galvanized Hex bolt clamp | 5.1/4” | 137 | 149 | 5.3/8″ x 5.7/8″ | SAE 1010/20 – Inox 304 |

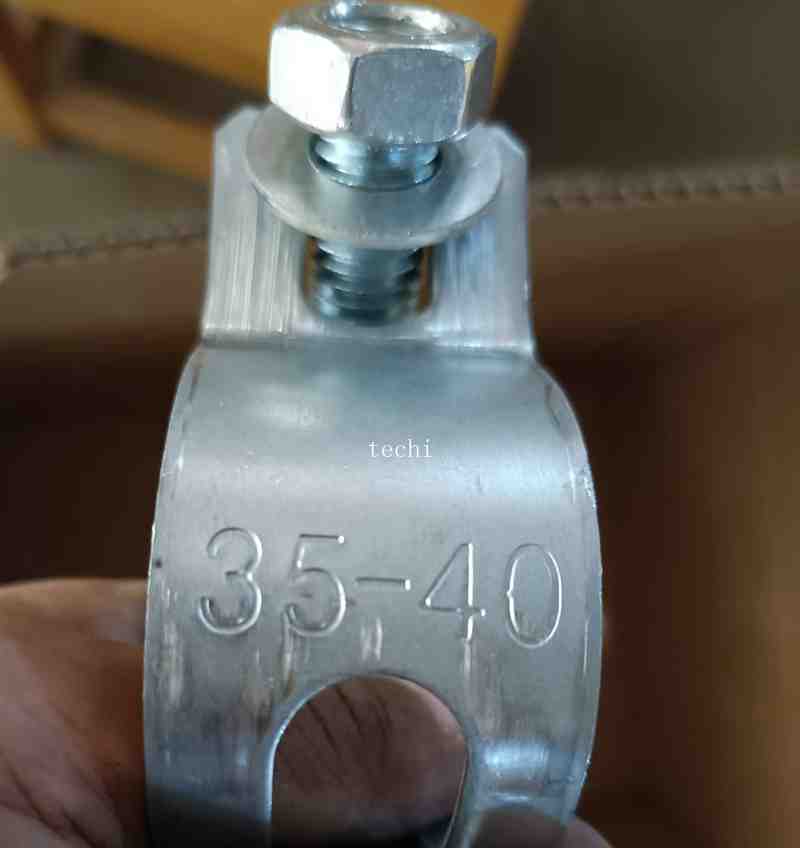

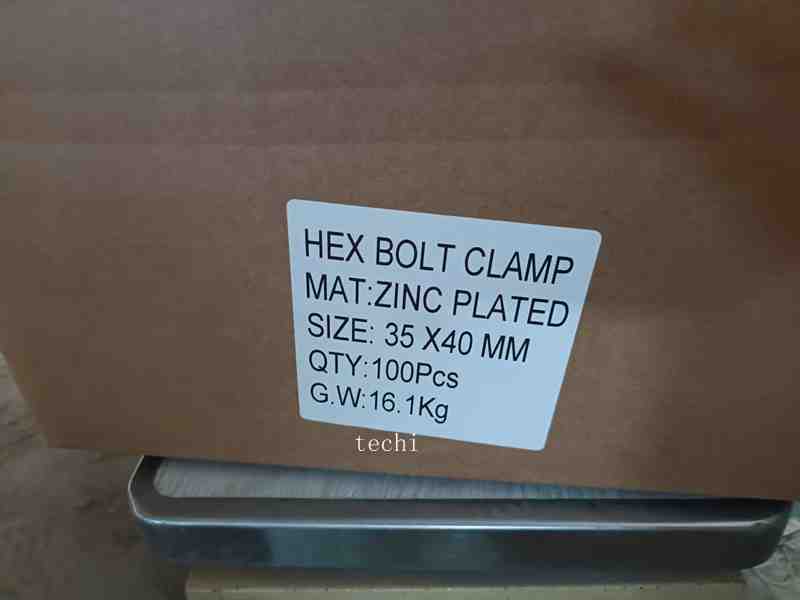

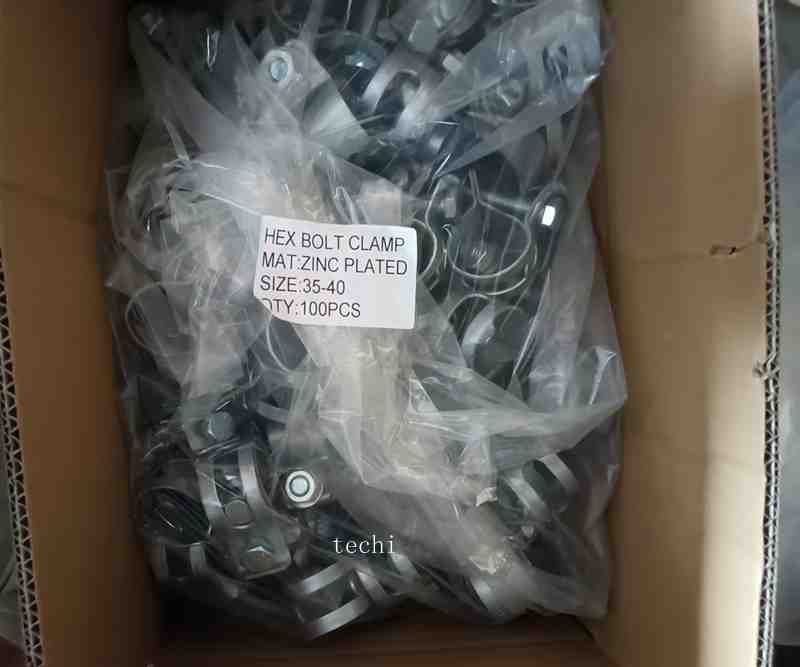

Hex bolt hose clamp pictures and package:
