Heavy Twin Pipe Clamp 32mm

Heavy Duty Hydraulic Pipe Clamp Double Holes

Structure:assembly including cover plate, weld plate, clamp body,hexagon bolts

Sizes:Rang of O.D. 6mm  to 42mm

Working Temperature
PP -30 degree up to +90 degree in dark green color
PA -40 degree up to +120 degree in dark color

AL -50°C up to +300°C Natural color
Q235 -80°C up to +500°C Galvanizing or parkerising
SUS304 or SUS316 -80°C up to +500°C Natural color

Heavy Duty Twin Hydraulic Pipe Clamp

Techi industrial Co.,ltd is hydraulic pipe clamp factory and manufacturer in CHINA, Our products cover hydraulic heavy series pipe clamp, light series pipe clamp, twin series pipe clamp, heavy twin series pipe clamp,U form clamp, Saddle clamp,plastic pipe clamp,polyamide pipe clamp. Pipe clamp plates surface treatment:Electroplating (galvanizing, nickel plating, gilding, etc.), painting, heat treatment, carbonitriding, etching, powder painting, polishing, electroplating, sandblasting, anodizing, passivation

HEAVY TWIN SERIES HYDRAULIC PIPE CLAMPS are available in a outer hexagon socker screw+socket screw+cover plate+ Polypropylene&Polyamide clamp body+welded base plate

Heavy Twin pipe clamp series can be supplied in 5 series for normal mechanical stress,tube O.D 6 to 42mm.( 6~42mm)

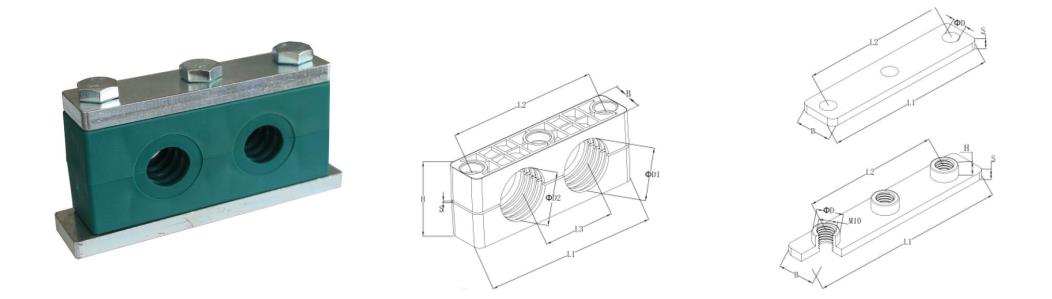

Twin Heavy Duty Hydraulic Pipe Clamp Double Hole size:

Heavy twin series pipe clamp,heavy twin pipe clamp size 6mm 8mm 10mm 12mm 14mm 16mm 18mm 19mm 20mm 21.4mm 21.4mm 25.4mm 26.9mm 32mm 33.7mm 38mm 40mm 42mm.

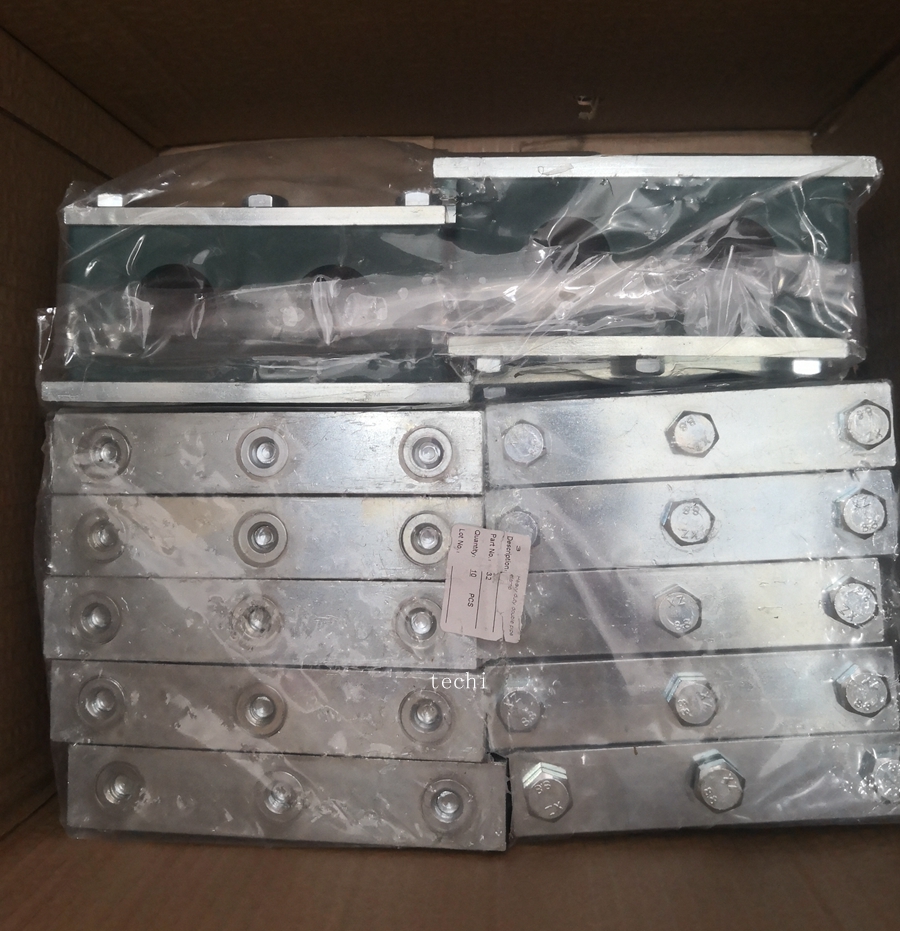

Heavy Duty Hydraulic Twin Pipe Clamp Double Holes Package and production lines
