Germany Type Hose Clamp 60-80mm 2 3/8″- 3 1/8″
Material:zinc plated,galvanised steel iron,electroplating ,stainless steel SUS304 201 430 316
Screw:hexagon screw,Phillips screw
Thickness of hose clamps band:0.6mm 0.7mm 0.8mm
Germany type hose clamp W1 W2 W4 W5 torque:5~9N.M
Germany type hose clamp size 60-80mm 2 3/8″-3 1/8″
Tianjin Techi industrial CO., is one of the eminent manufacturers of german type hose clamp band 9mm, german type hose clamp band 12mm, german type hose clamp W1, galvanized zinc plated german type hose clamp, stainless steel 201 german type hose W2, stainless steel 304 316 german type hose clamp W4 W5, manufacturer and exporter in CHINA
German type hose clamp size:
8-12mm 10-16mm 12-20mm 16-27mm 20-32mm 25-40mm 32-50mm 40-60mm 50-70mm 60-80mm 70-90mm 80-100mm 90-110mm 100-120mm 110-130mm 120-140mm 130-150mm 140-160mm
Material of germany type hose clamp
W1: Completely Zinc-coated Steel,galvanized steel,carbon steel,mild steel
W2: Band–AISI430 Housing–AISI430 With Palted Screw
Band–AISI430 Housing–AISI430 Screw–AISI410
W4: Band–AISI304 Housing–AISI430 Plated Screw
Band–AISI304 Housing–AISI304 Screw–AISI302
W5: Band–AISI316 Housing—AISI316 Screw:stainless steel AISI316
German type hose clamp size and drawing:
| Product | Diameter Range | Packing/CTN | |||
| mm | Inches | Band Thickness | pcs | kgs | |
| Germany type hose clamp size 8-12mm | 8-12 | 5/16″-1/2″ | 0.6 | 2,000 | 14.5 |
| Germany type hose clamp size 8-16mm | 8-16 | 5/16″-5/8″ | 0.6 | 2,000 | 15.7 |
| Germany type hose clamp size 12-20mm | 12-20 | 1/2″-3/4″ | 0.6 | 2,000 | 16.7 |
| Germany type hose clamp size 12-22mm | 12-22 | 1/2″-7/8″ | 0.6 | 2,000 | 17.8 |
| Germany type hose clamp size 16-25mm | 16-25 | 5/8″-1″ | 0.6 | 2,000 | 18 |
| Germany type hose clamp size 16-27mm | 16-27 | 5/8″-1 1/16″ | 0.6 | 2,000 | 19.2 |
Germany type hose clamp size 20-32mm |
20-32 |
3/4″-1 1/4″ |
0.6 |
2,000 |
18.1 |
Germany type hose clamp size 25-40mm |
25-40 |
1″-1 5/8″ |
0.6 |
2,000 |
19.1 |
| Germany type hose clamp size 35-50mm | 35-50 | 1 1/4″-2″ | 0.6 | 1,000 | 21.8 |
| Germany type hose clamp size 40-60mm | 40-60 | 1 5/8″-2 3/8″ | 0.6 | 1,000 | 24.1 |
| Germany type hose clamp size 50-70mm | 50-70 | 2″-2 3/4″ | 0.6 | 1,000 | 27.5 |
| Germany type hose clamp size 60-80mm | 60-80 | 2 3/8″-3 1/8″ | 0.6 | 500 | 16.5 |
| Germany type hose clamp size 70-90mm | 70-90 | 2 3/4″-3 1/2″ | 0.6 | 500 | 17.5 |
| Germany type hose clamp size 80-100mm | 80-100 | 3 1/8″-4″ | 0.6 | 500 | 18.1 |
| Germany type hose clamp size 90-110mm | 90-110 | 3 1/2″-4 3/8″ | 0.6 | 500 | 20.1 |
| Germany type hose clamp size 100-120mm | 100-120 | 4″-4 3/4″ | 0.6 | 500 | 20.5 |
| Germany type hose clamp size 110-130mm | 110-130 | 4 3/8″-5 1/8″ | 0.6 | 250 | 11.2 |
| Germany type hose clamp size 120-140mm | 120-140 | 4 3/4″-5 1/2″ | 0.6 | 250 | 12 |
| Germany type hose clamp size 130-150mm | 130-150 | 5 1/8″-5 7/8″ | 0.6 | 250 | 12.9 |
| Germany type hose clamp size 140-160mm | 140-160 | 5 1/2″-6 1/4″ | 0.6 | 250 | 12.5 |

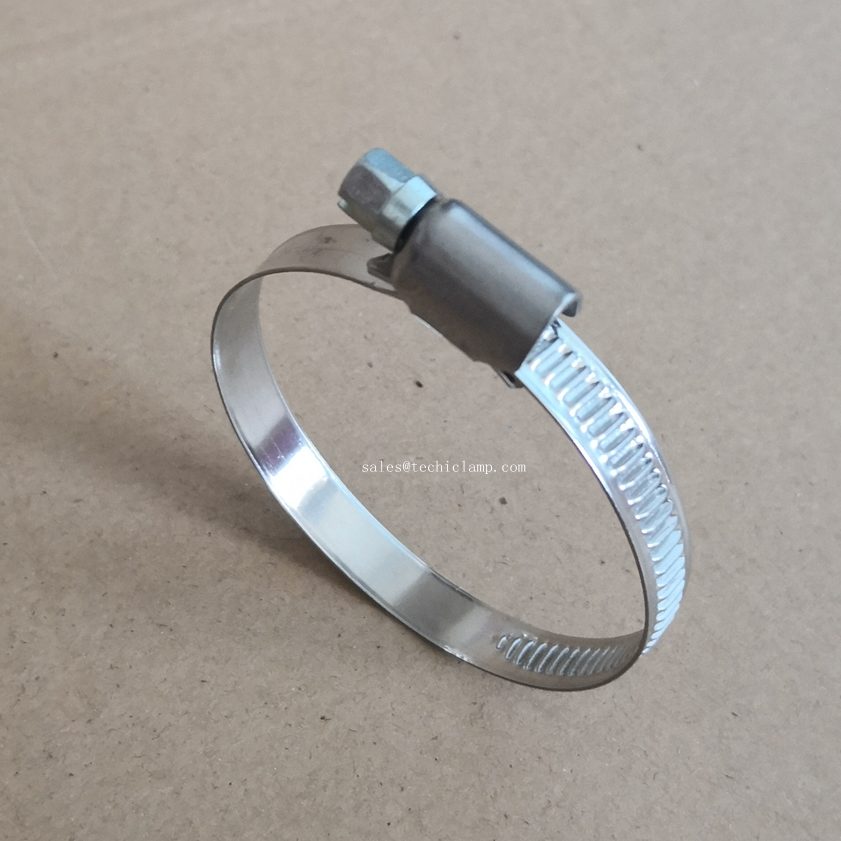

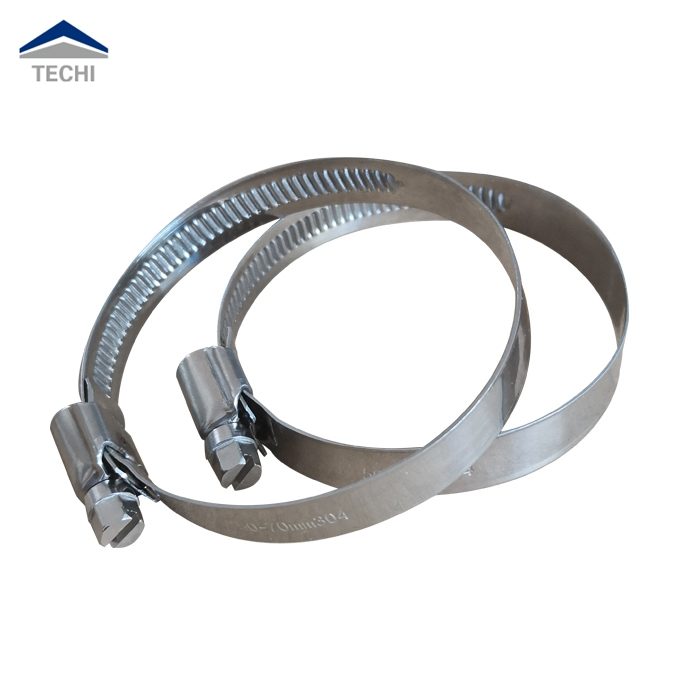

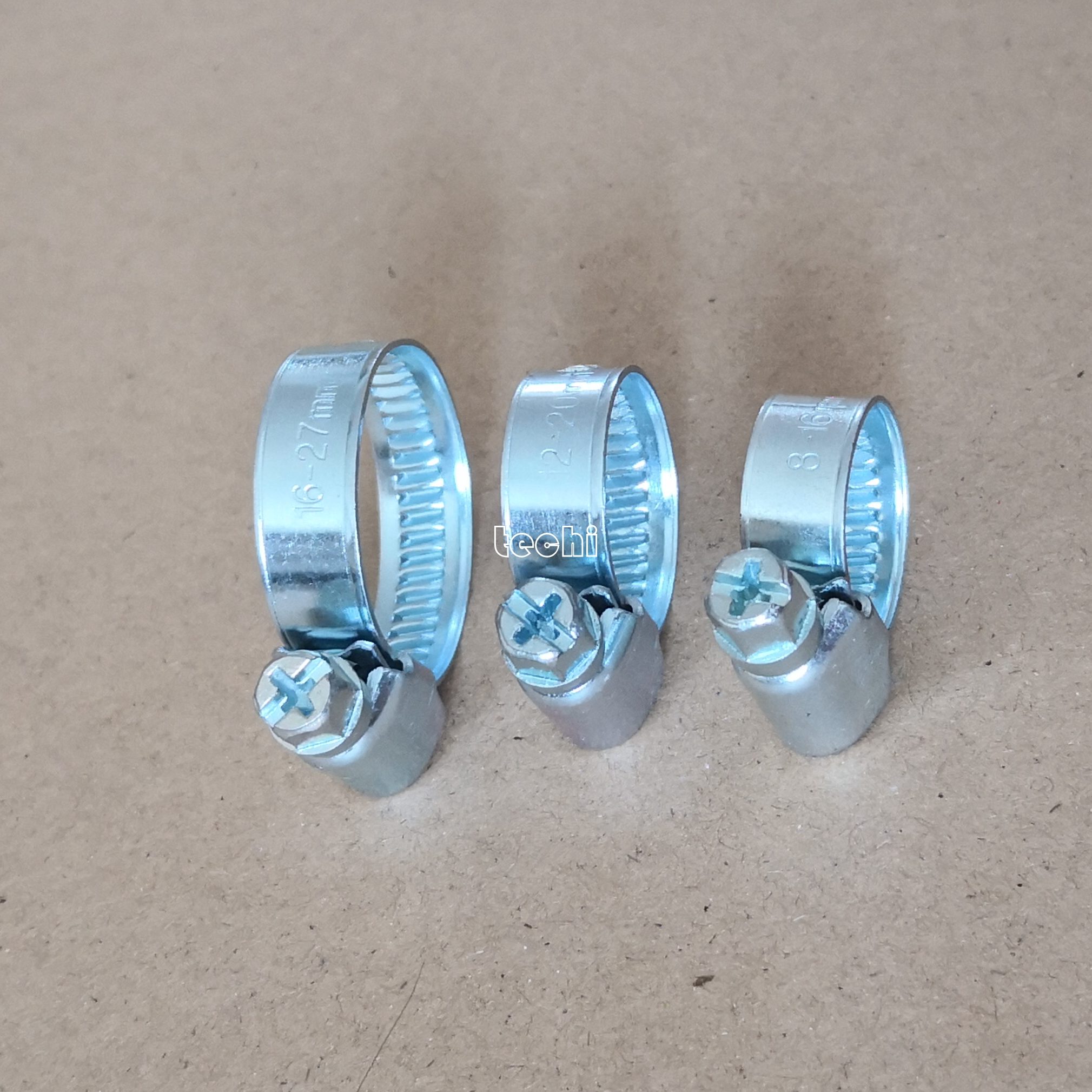

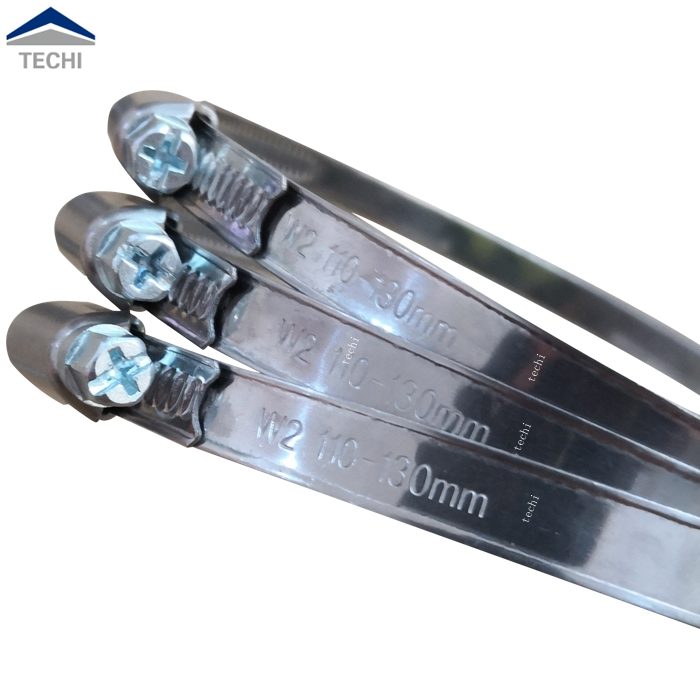

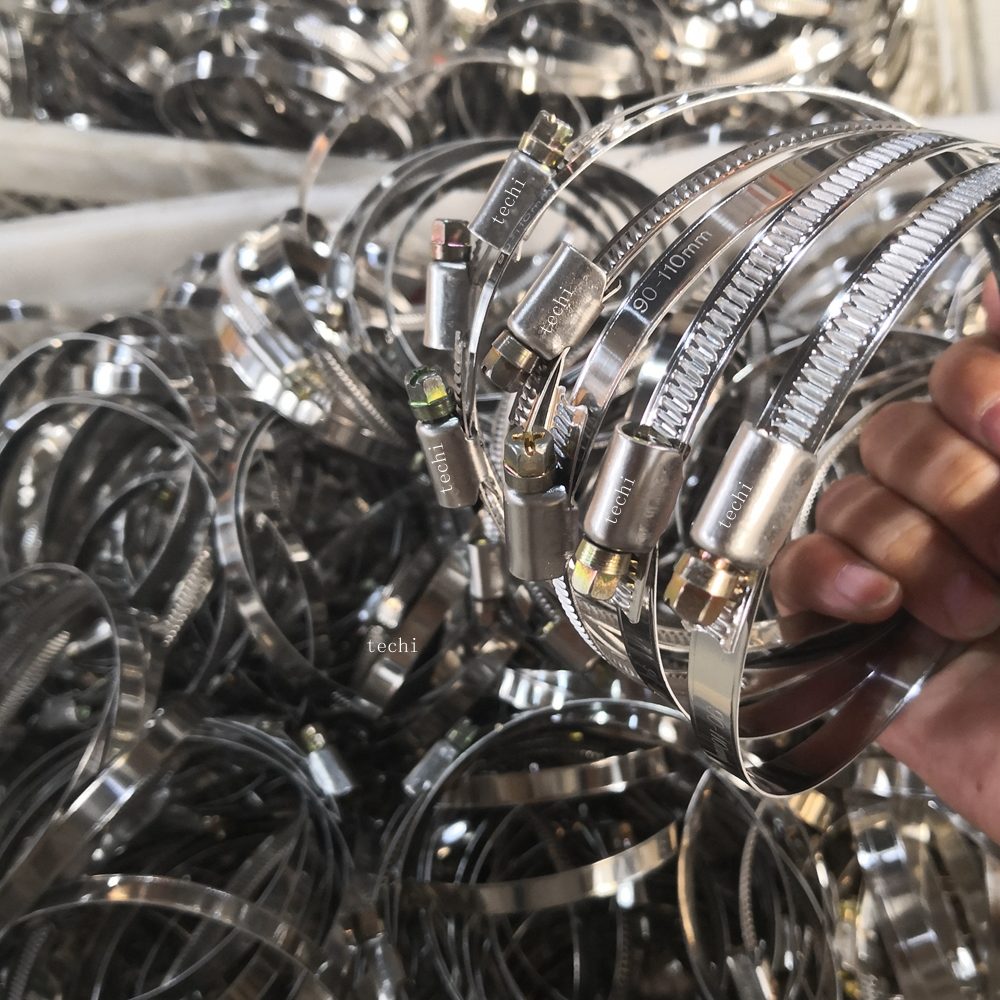

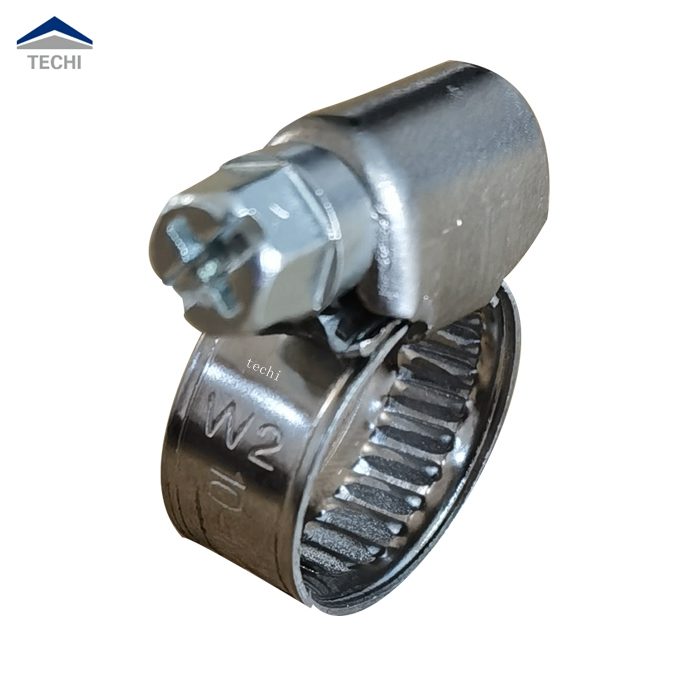

worm drive german type hose clamp Image Gallery：
Widely used in Auto,Gas Industry,petrochemical industry,pharmacy,food wine sewage treatment,Purification dust removal auto parts and other machine parts.
| Payment & Shipping Terms | Supply Capacity | ||
| Payment Term: | L/C, Western Union, D/P, T/T | Production Capacity: | 80000 Per Day |
| MOQ: | 500 Piece/Pieces | Packing: | 100/carton |
| Means of Transport: | Land, Ocean,Air | Delivery Date: | 15 working day |
